• Year
  • 1965
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 115925

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); 2 AF stage(s)
  • Tuned circuits
  • 7 AM circuit(s)     9 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org

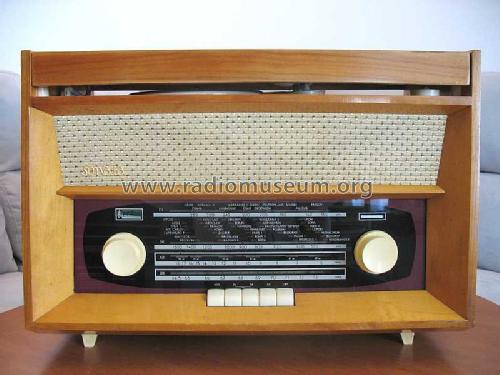

  • Model: Sonata 62130 - Unitra DIORA - Radiowerk
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 555 x 387 x 308 mm / 21.9 x 15.2 x 12.1 inch
  • Notes
  • Record-player installed, type Fonica GE56.
  • Net weight (2.2 lb = 1 kg)
  • 14.1 kg / 31 lb 0.9 oz (31.057 lb)
  • Price in first year of sale
  • 2,350.00 zl
  • Source of data
  • - - Data from my own collection
  • Author
  • Model page created by Mariusz Cedler. See "Data change" for further contributors.
