  P22 (P 22)


Country: Germany Manufacturer/Brand: Dual, Gebr. Steidinger; St. Georgen/Schwarzwald
Year: 1974 – 1978 Type: Music/speech recorder and/or -player.
Tonspeichergerät im weiteren Sinn, also auch Kassettengerät, CD-Player, Tonbandmaschine, Video-Maschine etc. möglich.
Recorder and/or Player
Mod.-ID = 85791 previous | Result List | next | New search for Radios etc. Schematics etc.: 7 (for members) Principle AF (audio) amplification only, one, two or three stages etc.
Niederfrequenzverstärkung.
Meist als «Nachsatz» zu einem Empfänger verwendet, um das Tonsignal zu verstärken - z.B. für Lautsprecherwiedergabe statt Kopfhörer.
Audio-Amplification

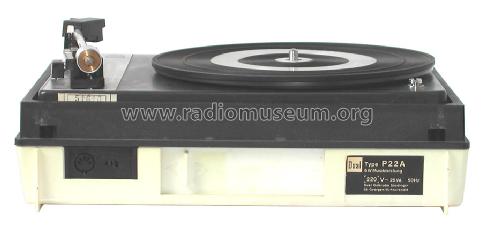

Details Record Player with integrated audio amplifier and loudspeaker.Rec.Player+Audio.Amp+LS
Power type and voltage AC set plus voltage range.
/ = 2 different voltages
- = voltage from-to
* = «Special»
Apparareil à courant alternatif. Tensions mentionnées.
/ = 2 Spannungswahlen
- = von-bis
* = Fabrikwahl/«Spezial»
Trafo ist nicht immer mit Primär- undSekundärwicklungen versehen. Dadurch kann das Chassis ein gefährlichesPotential führen.
Alternating Current supply (AC) / 110-125; 220-240 Volt

Loudspeaker/pwr.out Permanent magnetic dynamic loudspeaker (moving-coil) in elliptical form - without field excitation coil. Haut parleur elliptique avec système dynamique (sans bobine d`excitation).
Permanent-dynamischer Ovallautsprecher (elliptisch, ohne Erregerspule für das Magnetfeld).
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
/ 6 W

from Radiomuseum.org Model:   P22 (P 22) Material Plastic case - not bakelite.
Caisse en plastique - pas en bekelite!
Moderner Kunststoff im Gegensatz zu Materialien wie Bakelit, Philit etc.
Modern plastics (no Bakelite or Catalin)

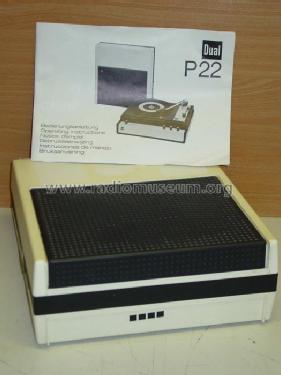

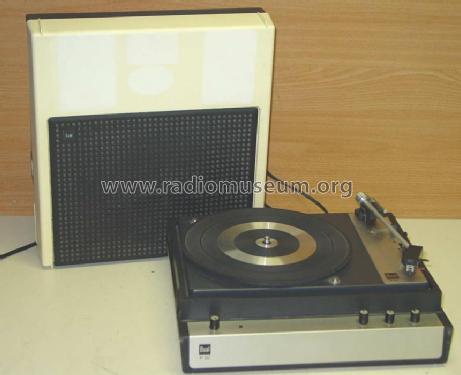

Shape Portable, e.g. Portable Radio (with or without mains > 8 inch).
Dimensions (WHD) 340 x 130 x 300 mm / 13.4 x 5.1 x 11.8 inch
Transistors 5:

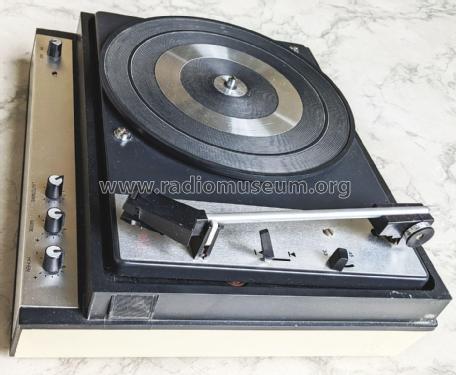

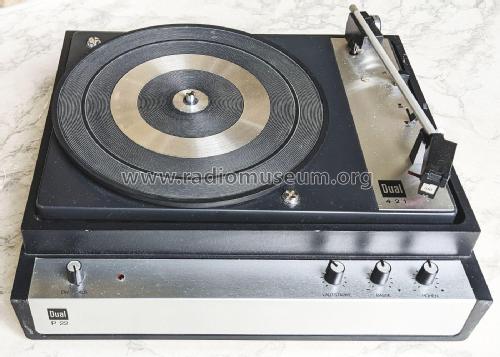

Notes Phono-Chassis = 421 (wie 430 jedoch mit federbalanciertem Tonarm).

This model was suggested by Peter Böhm.
