• Year
  • 1981
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 134950

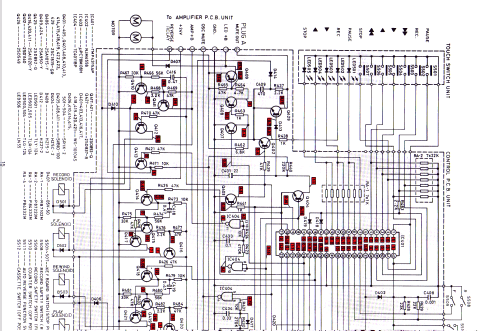

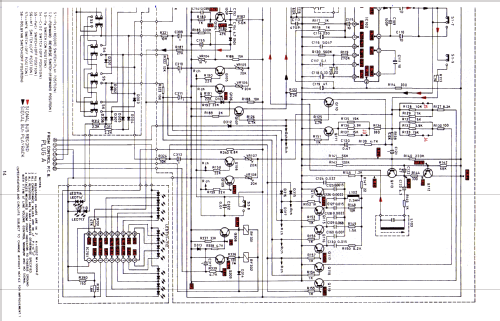

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 56
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Alternating Current supply (AC) / 230 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org

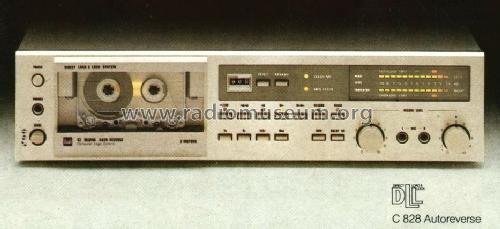

  • Model: C 828 - Dual, Gebr. Steidinger; St.
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 440 x 112 x 355 mm / 17.3 x 4.4 x 14 inch
  • Notes
  • Dual C828
    30-19000 Hz, +/- 0,04% WRMS. M+X Tonkopf, DLL, 2 Motoren, Dolby. Farbe: satin-metallic. Direct Load & Lock System;Autoreverse; Computer Logic Control;2 LED Peak Level Indikatoren;

    alle Halbleiter nur einmal aufgeführt

  • Net weight (2.2 lb = 1 kg)
  • 8.5 kg / 18 lb 11.6 oz (18.722 lb)
  • Source of data
  • -- Original prospect or advert
