HS 25

HS 25; Dual, Gebr. (ID = 285742) R-Player
HS 25; Dual, Gebr. (ID = 2117781) R-Player HS 25; Dual, Gebr. (ID = 2117782) R-Player

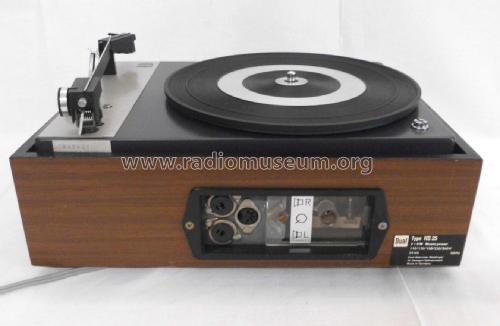

HS 25; Dual, Gebr. (ID = 2117785) R-Player HS 25; Dual, Gebr. (ID = 2117784) R-Player

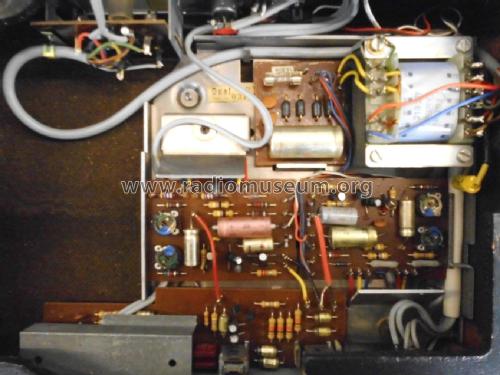

HS 25; Dual, Gebr. (ID = 2117783) R-Player HS 25; Dual, Gebr. (ID = 2117786) R-Player
HS 25; Dual, Gebr. (ID = 1716504) R-Player HS 25; Dual, Gebr. (ID = 1716505) R-Player
HS 25; Dual, Gebr. (ID = 285741) R-Player
Use red slider bar for more.
HS 25; Dual, Gebr. (ID = 2117781) R-Player

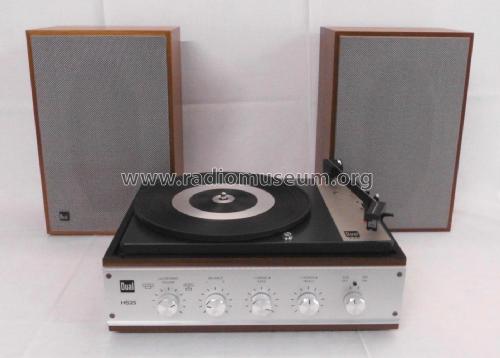

Dual, Gebr.: HS 25 [R-Player] ID = 2117781 1397x1001
Select picture or schematic to display from thumbnails on the right and click for download.
For model HS 25, Dual, Gebr. Steidinger; St. Georgen/Schwarzwald:
Leider ohne die zugehörige Plexiglas - Abdeckung

Country:  Germany
Manufacturer / Brand:  Dual, Gebr. Steidinger; St. Georgen/Schwarzwald
Year: 1970–1972 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 10: BC173 BC172 BC108 AC180 AC181 BC173 BC172 BC108 AC180 AC181
Main principle Audio-Amplification
Wave bands - without
Details Rec.Player+Audio.Amp+LS
Power type and voltage Alternating Current supply (AC) / 110; 130; 150; 220; 250 Volt
Loudspeaker - This model requires external speaker(s).
Power out 8 W (12 W max.)
from Radiomuseum.org Model: HS 25 - Dual, Gebr. Steidinger; St.
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 304 x 149 x 245 mm / 12 x 5.9 x 9.6 inch
Notes

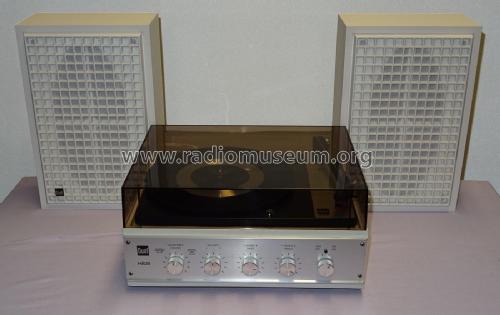

Stereo Heimanlage HS 25

NF-Verstärker (TV72A) mit zwei Endstufen je 4 Watt (Sinus) / 6 Watt (Musik), Übertragungsbereich 20 - 20.000Hz ± 3 dB.

Phono-ChassisDual_420 (33/45UpM) mit Keramiksystem CDS 650 mit Nadel DN6 (Auflagekraft 40mN) und Übertragungsbereich: 20 - 16.000Hz ± 3 dB,

Lautsprecherboxen: 2 x CL 11, Breitbandlautsprecher 260 x 130mm, Belastbarkeit 6 Watt, Übertragungsbereich 80 - 16.000Hz, im Lieferumfang der Heimanlage.

Abdeckhaube (Plexiglas) CH8 im Lieferumfang
Gehäuse: Nußbaum später auch Schleiflack, weiß als HS 25W

Net weight (2.2 lb = 1 kg) 5.3 kg / 11 lb 10.8 oz (11.674 lb)
Price in first year of sale 378.00 DM
Collectors' prices
Source of data Handbuch VDRG 1970/1971
Mentioned in -- Original prospect or advert (Dual Programm 1970/71, 1971/72 und Bedienungsanleitung)

Model page created by Wolfgang Winkler. See "Data change" for further contributors.
