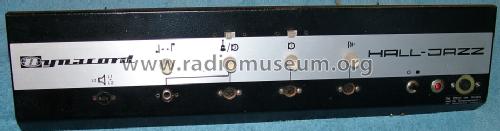

Hall Jazz ; Dynacord Pinternagel (ID = 308492) Ampl/Mixer Hall Jazz ; Dynacord Pinternagel (ID = 1299115) Ampl/Mixer
Hall Jazz ; Dynacord Pinternagel (ID = 1299116) Ampl/Mixer Hall Jazz ; Dynacord Pinternagel (ID = 1299118) Ampl/Mixer
Hall Jazz ; Dynacord Pinternagel (ID = 1299127) Ampl/Mixer Hall Jazz ; Dynacord Pinternagel (ID = 1299129) Ampl/Mixer
Hall Jazz ; Dynacord Pinternagel (ID = 1299130) Ampl/Mixer Hall Jazz ; Dynacord Pinternagel (ID = 1299131) Ampl/Mixer
Hall Jazz ; Dynacord Pinternagel (ID = 1299132) Ampl/Mixer Hall Jazz ; Dynacord Pinternagel (ID = 1299133) Ampl/Mixer
Use red slider bar for more.
Hall Jazz ; Dynacord Pinternagel (ID = 308492) Ampl/Mixer
Dynacord Pinternagel: Hall Jazz [Ampl/Mixer] ID = 308492 552x407
Select picture or schematic to display from thumbnails on the right and click for download.
For model Hall Jazz, Dynacord (Pinternagel):
Arlt-Katalog 1964/65

Country:  Germany
Manufacturer / Brand:  Dynacord (Pinternagel)
Year: 1963/1964 Type: Audio Amplifier or -mixer
Valves / Tubes 7: ECC83 ECC83 ECC83 EL84 EL84 ECL86 EZ81
Principle Audio-Amplification; 5 AF stage(s)
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 18 W (unknown quality)
from Radiomuseum.org Model: Hall Jazz - Dynacord Pinternagel
Material Leather / canvas / plastic - over other material
Shape Console with any shape - in general
Dimensions (WHD) 625 x 415 x 185 mm / 24.6 x 16.3 x 7.3 inch
Notes Koffermischverstärker mit Halleinrichtung (Spirale), 3 Eingänge (2× Mic/Instrument 7 mV, Git. 12 mV). Lieferbar mit 2 verschiedenen Lautsprechern: Var. A mit 245 mm Ø und B mit 270 mm Ø.
Net weight (2.2 lb = 1 kg) 13 kg / 28 lb 10.1 oz (28.634 lb)
Price in first year of sale 510.00 DM
Mentioned in Arlt-Katalog 1964/65

Model page created by Günther Stabe. See "Data change" for further contributors.
