• Country
• Great Britain (UK)

• Manufacturer / Brand
• Dynatron Radio Ltd., Maidenhead, Berkshire

• Year
• 1961

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 103501

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• OC171 OC171 AF116 AF116 AF116 OC71 OC81D OC81 OC81

• Main principle
• Superheterodyne (common); ZF/IF 470/10700 kHz

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Dry Batteries / 2 x 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 0.5 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

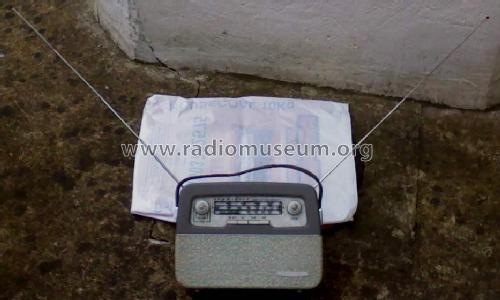

• Model: Commodore TP15 - Dynatron Radio Ltd.,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 12 x 8.75 x 4.5 inch / 305 x 222 x 114 mm

• Notes
• Elliptical loudspeaker 7 x 4.5 inch.

• Mentioned in
• -- Original-techn. papers.

• Literature/Schematics (1)
• - - Manufacturers Literature

• Literature/Schematics (2)
• Trader sheet 1559

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
