Transpower SRX26 Series Chassis
Dynatron Radio Ltd., Maidenhead, Berkshire
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Dynatron Radio Ltd., Maidenhead, Berkshire
- Year
- 1971
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 224337
Service Manual

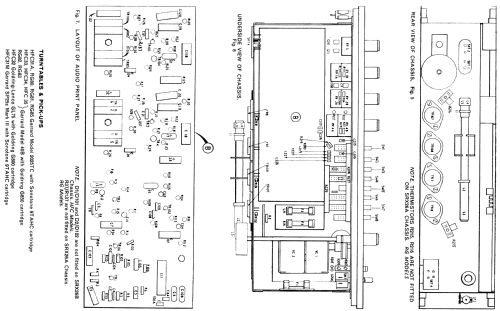

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 30
- Main principle
- Superheterodyne (common); ZF/IF 470/10700 kHz
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 220; 240 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 8 W (16 W max.)
- from Radiomuseum.org
- Model: Transpower SRX26 Series Chassis - Dynatron Radio Ltd.,
- Shape
- Chassis only or for «building in»
- Notes
-
The chassis SRX26A is used in RG80, RG81, RG82, RG83, RG85.
The chassis SRX26B is used in TRV26, HFC31, HVC32, HFC33, HFC34, HFC35.
The schematic does not show details of FM-Tuner-Unit with 2 transistors and AM-IF-Module with 3 transistors. Only left channel of Amplifier is printed.
