SR2410

• Country
• Germany

• Manufacturer / Brand
• Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG

• Year
• 1983–1988

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 75137

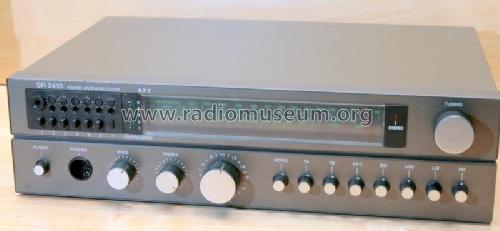

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 12

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 4 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Various materials

• from Radiomuseum.org
• Model: SR2410 - Stern-Radio Sonneberg, VEB,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 390 x 100 x 280 mm / 15.4 x 3.9 x 11 inch

• Notes
• 7 ICs, 12 Dioden, 6 LED.
  Ausgangsleistung 2× 4,5 W (Sinus). 6 Senderspeicher.
  Ab 1986 im VEB Robotron Sömmerda gefertigt mit der Beschriftung "ROBOTRON".

• Net weight (2.2 lb = 1 kg)
• 4.5 kg / 9 lb 14.6 oz (9.912 lb)

• Price in first year of sale
• 980.00 DM

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Mentioned in
• Die Geschichte der Rundfunkindustrie der DDR Band 2 1968 - 1990

• Literature/Schematics (1)
• -- Original-techn. papers. (RFE12/83)

• Author
• Model page created by Jörg Kulbe. See "Data change" for further contributors.
