Megaohmmeter MG3

Megaohmmeter MG3; EAW, Elektro- (ID = 1274988) Equipment Megaohmmeter MG3; EAW, Elektro- (ID = 1274984) Equipment
Megaohmmeter MG3; EAW, Elektro- (ID = 1274994) Equipment Megaohmmeter MG3; EAW, Elektro- (ID = 1714655) Equipment
Megaohmmeter MG3; EAW, Elektro- (ID = 1714656) Equipment Megaohmmeter MG3; EAW, Elektro- (ID = 1850681) Equipment
Use red slider bar for more.
Megaohmmeter MG3; EAW, Elektro- (ID = 1274988) Equipment
EAW, Elektro-: Megaohmmeter MG3 [Equipment] ID = 1274988 525x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model Megaohmmeter MG3, EAW, Elektro-Apparate-Werke, VEB; (ex AEG Treptow), Berlin-Treptow (Ostd.)

Country:  Germany
Manufacturer / Brand:  EAW, Elektro-Apparate-Werke, VEB; (ex AEG Treptow), Berlin-Treptow (Ostd.)
alternative name

AEG Treptow (AT, EAT); Berlin || EAT (El.-App. Treptow)
Brand
AT Apparatewerk Treptow
Year: 1970 ?? Category: Service- or Lab Equipment
Wave bands - without
Details
Loudspeaker
Power out
from Radiomuseum.org Model: Megaohmmeter MG3 - EAW, Elektro-Apparate-Werke,
Dimensions (WHD) 115 x 155 x 180 mm / 4.5 x 6.1 x 7.1 inch

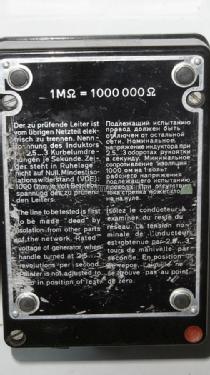

Notes Isolationsmesser, bezieht seine Betriebsspannung aus dem eingebautem Kurbelinduktor. Messung grosser Widerstände.0 bis unendlich.....
Net weight (2.2 lb = 1 kg) 1.410 kg / 3 lb 1.7 oz (3.106 lb)

Model page created by Wolfgang Lill. See "Data change" for further contributors.
