Phonograph Amberola 30

Phonograph Amberola 30; Edison, Thomas A., (ID = 1723955) TalkingM Phonograph Amberola 30; Edison, Thomas A., (ID = 116816) TalkingM
Phonograph Amberola 30; Edison, Thomas A., (ID = 116817) TalkingM Phonograph Amberola 30; Edison, Thomas A., (ID = 116818) TalkingM
Phonograph Amberola 30; Edison, Thomas A., (ID = 116819) TalkingM Phonograph Amberola 30; Edison, Thomas A., (ID = 116820) TalkingM
Phonograph Amberola 30; Edison, Thomas A., (ID = 116821) TalkingM Phonograph Amberola 30; Edison, Thomas A., (ID = 1022305) TalkingM
Phonograph Amberola 30; Edison, Thomas A., (ID = 1723956) TalkingM
Use red slider bar for more.

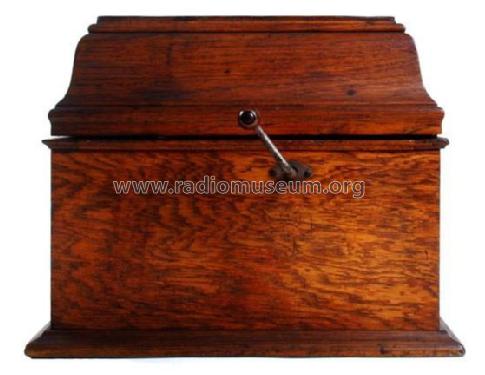

Phonograph Amberola 30; Edison, Thomas A., (ID = 1723955) TalkingM
Edison, Thomas A.,: Phonograph Amberola 30 [TalkingM] ID = 1723955 928x1400
Select picture or schematic to display from thumbnails on the right and click for download.
For model Phonograph Amberola 30, Edison, Thomas A., North American Phonograph / National Phonograph; Orange, NJ

Country:  United States of America (USA)
Manufacturer / Brand:  Edison, Thomas A., North American Phonograph / National Phonograph; Orange, NJ
Year: 1915 Category: Talking machine - Mechanical Gramophone/Phonograph
schematic requested
Wave bands - without
Details Other Recorder/Player
Power type and voltage Solar- and/or muscle driven, also addl. power jack possible
Loudspeaker Horn
Power out
from Radiomuseum.org Model: Phonograph Amberola 30 - Edison, Thomas A., North
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Dimensions (WHD) 12.5 x 12.75 x 16 inch / 318 x 324 x 406 mm

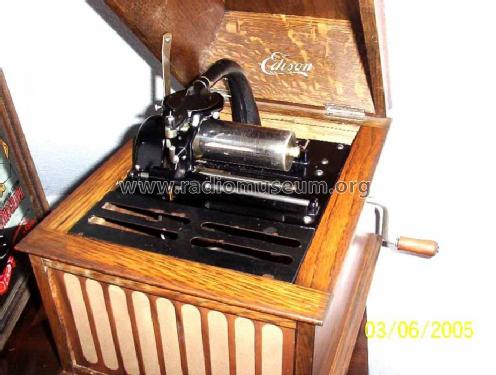

Notes Phonograph playing 4 min. and 2 min. cylinder, mechanical movement. Internal horn.
Net weight (2.2 lb = 1 kg) 17 kg / 37 lb 7.1 oz (37.445 lb)
Price in first year of sale 41.00 $
Mentioned in The New Edison Diamond Amberola 1919/1920
Literature/Schematics (1) Brian Jewell: Veteran Talking Machines.

Model page created by André Bassin. See "Data change" for further contributors.
