• Country
• Germany

• Manufacturer / Brand
• Ehrlich, Kurt; Pirna-Copitz (Ostd.)

• Year
• 1957–1960

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 72841

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• ECL81

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 125; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 2 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

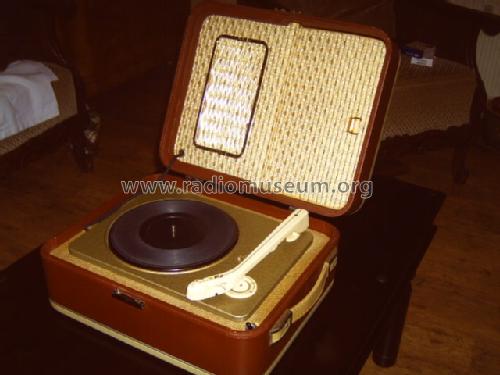

• Model: Toscana - Ehrlich, Kurt; Pirna-Copitz

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 375 x 310 x 190 mm / 14.8 x 12.2 x 7.5 inch

• Notes
• Phonokoffer, 16/33/45/78 UpM mit dem Chassis 4 TL 204. Abtastsystem mit Saphir-Nadel (umschaltbar Normal/Mikro).

• Net weight (2.2 lb = 1 kg)
• 6.9 kg / 15 lb 3.2 oz (15.198 lb)

• Price in first year of sale
• 326.00 DM

• External source of data
• "Radio und Fernsehen" H.6/1960

• Source of data
• -- Original prospect or advert / Radiokatalog Band 2, Ernst Erb

• Mentioned in
• Funkverlag Hein, Service-CD

• Author
• Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
