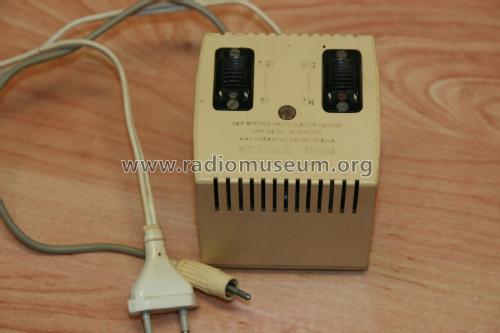

UNI-Netzteil N200

• Country
• Germany

• Manufacturer / Brand
• Elektronik Gießübel, VEB; /Thür. (Ostd.)

• Year
• 1971–1975 ??

• Category
• Power supply/conditioner or battery or charger

• Radiomuseum.org ID
• 126678

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 2

• Semiconductors

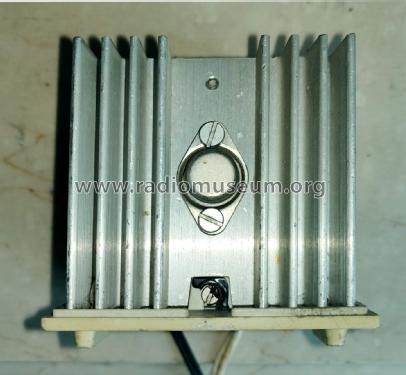

• Tr.Gl.=Metal-rectif. GC116 GD160 SZX19

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: UNI-Netzteil N200 - Elektronik Gießübel, VEB; /

• Dimensions (WHD)
• 82 x 88 x 80 mm / 3.2 x 3.5 x 3.1 inch

• Notes

• Netzteil für Tonbandgerät KT100 und Kofferempfänger, stabilisierte Spannungen 7,5 und 9 V, max. 350 mA. Firmierung noch "PGH Mechanik-Elektronik Schönbrunn".

  z.B für KT100, Stern Dynamic, Stern Elite R150

• Net weight (2.2 lb = 1 kg)
• 0.7 kg / 1 lb 8.7 oz (1.542 lb)

• Price in first year of sale
• 70.00 Mark

• Mentioned in
• -- Original prospect or advert

• Author
• Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
