• Country
• Poland

• Manufacturer / Brand
• Elektrit, Wilno

• Year
• 1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 77317

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• HP4101 PP4101 V430

• Main principle
• TRF with regeneration; 1 AF stage(s)

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 120, 135, 150, 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17.5 cm = 6.9 inch

• Material
• Wooden case

• from Radiomuseum.org

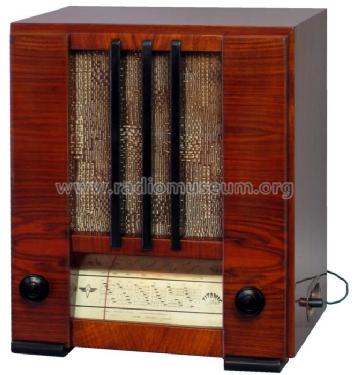

• Model: Titanic 37 Z - Elektrit, Wilno

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 310 x 355 x 217 mm / 12.2 x 14 x 8.5 inch

• Net weight (2.2 lb = 1 kg)
• 6.8 kg / 14 lb 15.6 oz (14.978 lb)

• Price in first year of sale
• 255.00 ZL

• Mentioned in
• Zlote Lata Radia, Polen

• Author
• Model page created by Henryk Berezowski. See "Data change" for further contributors.
