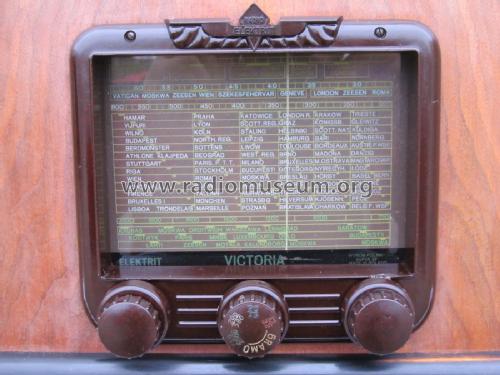

Victoria Z

Elektrit, Wilno

  • Year
  • 1936/1937
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 63029

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common)
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and 2 x Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 120-220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Victoria Z - Elektrit, Wilno
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 440 x 485 x 305 mm / 17.3 x 19.1 x 12 inch
  • Price in first year of sale
  • 540.00 ZL
  • Author
  • Model page created by Henryk Berezowski. See "Data change" for further contributors.
