L-C-R- Meter (Bittorf)

Image ID = 517440 for Elektromess Dresden; L-C-R- Meter
Image ID = 517440 for Elektromess Dresden; L-C-R- Meter
Elektromess Dresden;: L-C-R- Meter [Equipment] ID = 517440 542x700

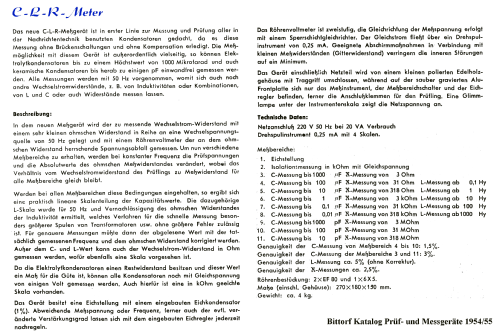

Original- Produktions-Programm 1956 der Firma Willy Bittorf Prüf -u. Meßgeräte Dresden

Country: Germany Manufacturer/Brand: Elektromess Dresden; PGH (Ostd)
Year: 1956 Type: Service- or Lab Equipment
Valves / Tubes 3: EF80 EF80 EZ80
Principle not available
Wave bands - without
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker/pwr.out - - No sound reproduction output.
from Radiomuseum.org Model: L-C-R- Meter
Material Metal case
Dimensions (WHD) 200 x 150 x 135 mm / 7.9 x 5.9 x 5.3 inch
Notes Anzeige auf Instrument mit 4 Skalen; Meßbereiche: 10 pF – 1000 µF; 3 Ohm – 5000 MOhm in 9 Meßbereichen und 0,1 H – 1000 H, Genauigkeit 2,5 %.

This model was suggested by Andreas Reuther.

All listed radios etc. from Elektromess Dresden; PGH (Ostd)
Here you find 24 models, 23 with images and 5 with schematics.
