Oszillophon OSP3 (OSP 3)
Country:
Austria
Manufacturer/Brand:
ELGE Erzeugung Elektrischer Messgeräte Ges.m.b.H; Wien
Year: 1957 ??
Type:
Radio Repair EquipmentAlle Arten von Geräten, die eine Radiowerkstatt im weitesten Sinne umfassen kann - sofern es der Hauptzweck des Apprates bzw. Modelles ist.
Mod.-ID = 102358
previous
|
Result List
|
next
|
New search for Radios etc.
Schematics etc.: 0 (for
members)
Power type and voltage
Alternating Current supply (AC) / 110; 150; 220 VoltAC set plus voltage range.
/ = 2 different voltages
- = voltage from-to
* = «Special»
Apparareil à courant alternatif. Tensions mentionnées.
/ = 2 Spannungswahlen
- = von-bis
* = Fabrikwahl/«Spezial»
Normalerweise sind diese Geräte mit einem Trafo mit Primär- und Sekundärwicklungen versehen. Dadurch führt das Chassis kein gefährliches Potential.
Loudspeaker/pwr.out
- This set has no built-in loudspeaker (separate or not necessary).This set has no built-in loudspeaker. It requires a separate loudspeaker or headset - or the set has no speaker output (not a radio).
Cet appareil n`a pas d`haut-parleur.
Das Gerät verfügt nicht über einen eingebauten Lautsprecher - entweder weil er nicht nötig ist (Gerät hat keine Tonwiedergabe) oder weil er separat zu stellen ist - bzw. das Gerät ist für Kopfhörerbetrieb.
www.radiomuseum.org
Model: Oszillophon OSP3 (OSP 3)
Dimensions (WHD)
330 x 250 x 150 mm / 13 x 9.8 x 5.9 inch
Valves / Tubes
3:
6AU6
(more
for members)
Notes

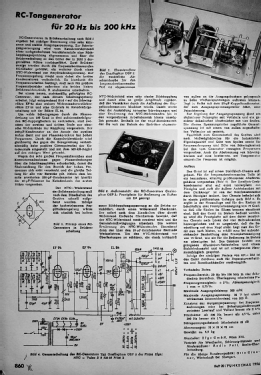

Tongenerator in RC-Schaltung. 20 Hz-200 kHz in 4 Bereichen. Induktivitätsmessung 1 mH-100 H; Messung der Eigenkapazität von Spulen; Resonanz-Widerstand von Schwingkreisen, Kreis- und Spulengüte.
Price in first year of sale
427
DM
Mentioned in
RIM Bastel-Jahrbuch 1958
This model was suggested by Otto Frosinn.
No further information
