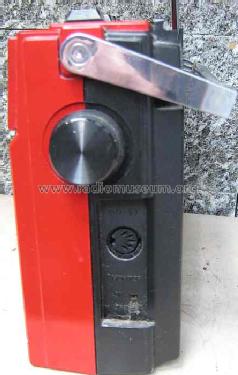

Electronic RC1550

Elite; Kaufhof

  • Year
  • 1990 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 222124

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line / Storage batteries (perhaps also batteries) / 220 / 4 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.5 cm = 3 inch
  • Power out
  • 0.75 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Electronic RC1550 - Elite; Kaufhof
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 290 x 170 x 75 mm / 11.4 x 6.7 x 3 inch
  • Notes
  • RC1550

    • Empfangsbereich:
      • 88 MHz - 108 MHz UKW
      • 520 KHz - 1600 KHz MW
    • 5 Pol.- DIN-Buchse
    • eingebautes Mikrofon
    • Teleskop- und Ferittantenne
    • Gehäusefarbe(n):
      • rot
  • Net weight (2.2 lb = 1 kg)
  • 1.2 kg / 2 lb 10.3 oz (2.643 lb)
  • Author
  • Model page created by Karlheinz Fischer. See "Data change" for further contributors.
