• Year
  • 1933
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 38456
    • alternative name: Emerson Television

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

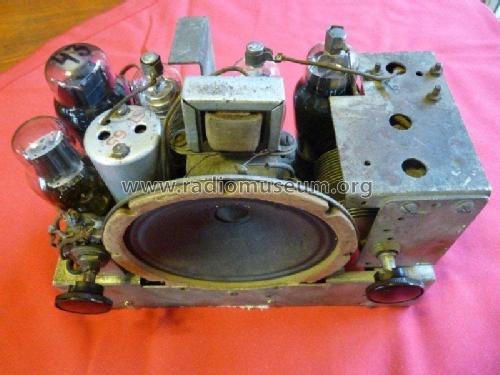

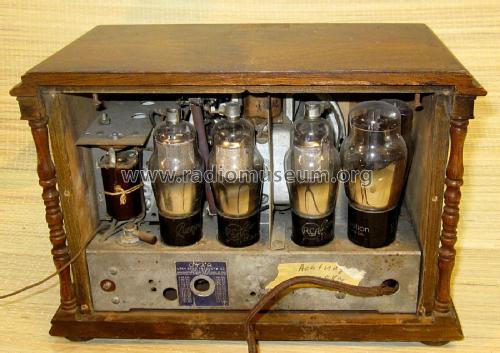

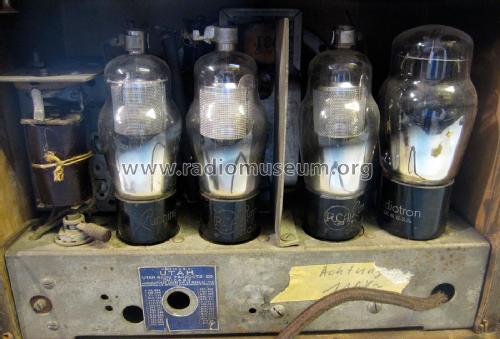

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 456 kHz; 1 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Tropical/Marine/Police Band(s) = 150-200m.

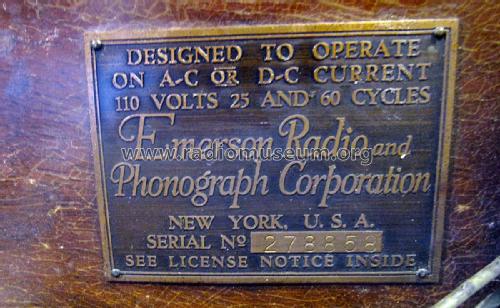

  • Power type and voltage
  • AC/DC-set / 100-135 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org

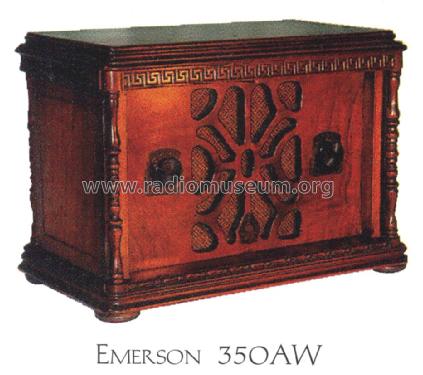

  • Model: 350AW - Emerson Radio & Phonograph

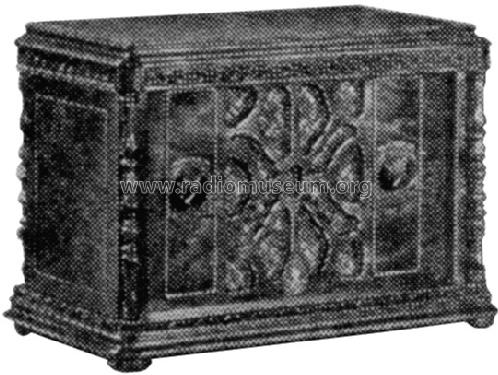

  • Shape
  • Tablemodel, with any shape - general.
  • Notes
  • BC(540-1500kHz) and TROP(1500-3000kHz) bands. Also 220V models.

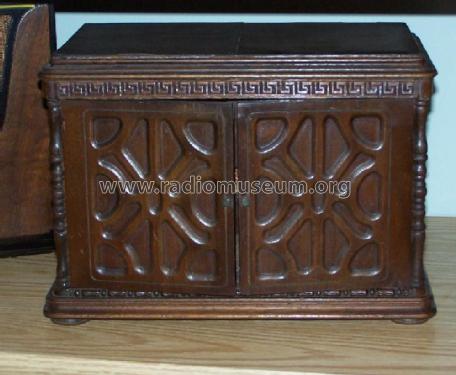

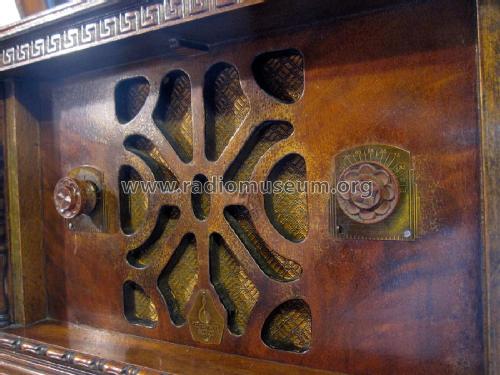

    Ingraham cabinet.

  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 4 = ca. 1934 and before
