Model: 556 Ch= 120018B (120018 B)
Antique radios, Old Time Radios
556 Ch= 120018B (120018 B)
Country:
United States of America (USA)
Manufacturer/Brand:
Emerson Radio & Phon. Corp.
Year: 1949
Type:
Radio or TunerBroadcast receiver (Radio).
Im Gegensatz zu Radioempfängern für kommerzielle und/oder militärische Zwecke und den frühen Empfängern für Morsezwecke nennen wir hier Radio bzw. Rundfunkempfänger. Aber: Gemäss internationaler Sprachregelung führt der Radiokatalog Band 1 alle Empfänger mit aktiven Bauteilen als RADIO. Wir unterscheiden hier ebenfalls nicht, ob mit Röhren bestückt, hybrid, mit Transistoren oder/und ICs.
Mod.-ID = 38594
previous
|
Result List
|
next
|
New search for Radios etc.
Schematics etc.: 5 (for
members)
Principle
Superhet with RF-stage; IF-Freq. 455; 10.7; 2 AF-stage(s)Superhet with a preamplification stage.
Please use «To add informations to model» if you know more! Thanks.
Récepteur TSF superhétérodyne avec préamplification de HF.
Superhet mit HF-Vorstufe.
Tuned circuits
6 AM circuit(s);
9 FM-circuit(s)
Wave bands
Broadcast (BC) and FM.Mittelwellen und UKW (FM).
Power type and voltage
AC/DC-set / 105-125 VoltAC-DC set (all-mains) - sometimes plus voltage range:
/ = 2 different voltages
- = voltage from-to
* = «Special»
Attention: Chassis mostly connected to deadly high tension!
Apparareil à tous-courants. Tensions mentionnées.
Wechsel- und Gleichstrom:
/ = 2 Spannungswahlen
- = von-bis
* = Fabrikwahl
Vorgeschalteten Trenntrafo verwenden! Chassis oft unter Starkstrom stehend!
Loudspeaker/pwr.out
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - ellipticalPermanent magnetic dynamic loudspeaker (moving-coil) in elliptical form - without field excitation coil. Haut parleur elliptique avec système dynamique (sans bobine d`excitation).
Permanent-dynamischer Ovallautsprecher (elliptisch, ohne Erregerspule für das Magnetfeld).
/ Ø 15.2 cm = 6 inch
www.radiomuseum.org
Model: 556 Ch= 120018B (120018 B)
Material
Moulded (Bakelite or Plastics)
Shape
Tablemodel, low profile (big size).
Valves / Tubes
6:
12BA6
(more
for members)
Notes
BC (540-1620kHz) and FM (88-108MHz) bands. Built-in loop antenna for BC band. Selenium rectifier.
Collectors prices
1 Collector price
(for members)
External source of data
Ernst Erb
Source of data
Collector's Guide to AR6.Ed. Slusser tubeCollectors Guide to Antique Radios, 6th Edition, 2005 by John Slusser. See also other editions (incl. Bunis).

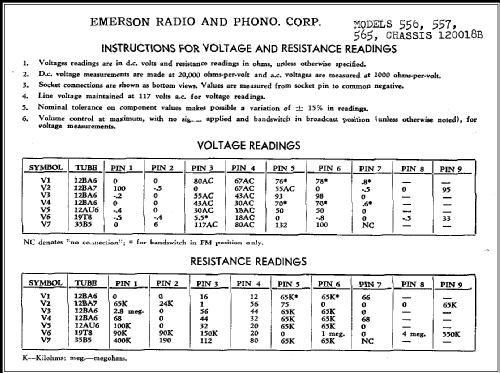

Circuit diagram reference
Rider's Perpetual, Volume 19Ave, RD 2, Canandaigua, NY 14424-9564, USA.
For your information:
Other big collections of schematics for the USA are the books «Most-Often-Needed Radio Diagrams», compiled by M.N.BEITMAN (beginning: 1926-1938 = Vol. 1).
and folders from:
Howard W. Sams Company, 2647 Waterfront Parkway East Drive, Indianapolis, IN 46214-2041, Tel.: 1-800-GET-SAMS or 1-800-428-5331 or 7267.
Mentioned in
The Radio CollectorGrinder, 1995The Radio Collectors Directory and Price Guide by Robert E. Grinder, Sonoran Publishing, LLC, USA: Is one of the best books for your information as a radio collector.
eBay seller clh212north.
No further information
