• Country
• United States of America (USA)

• Manufacturer / Brand
• Emerson Radio & Phonograph Corp.; New York, NY

• Year
• 1950 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 244443

• • alternative name: Emerson Television

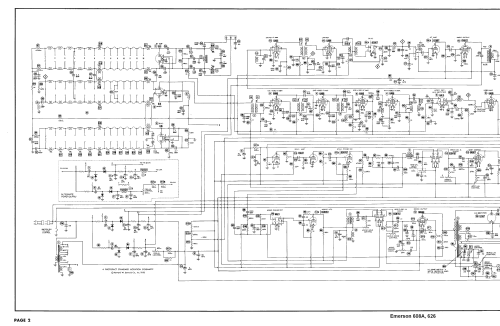

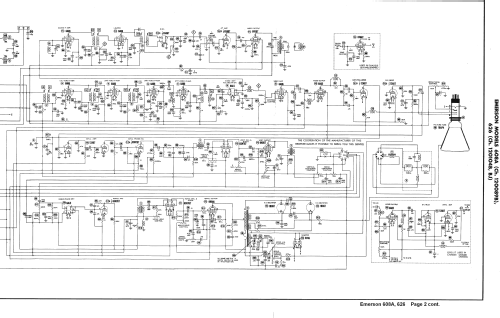

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 26

• Valves / Tubes
• 6J6 6J6 6J6 6AU6 6AU6 6AU6 6AU6 6AL5 6AU6 6AQ5 12AU7 6AU6 6AU6 6S8GT 6V6GT 12AU7 6SN7GT 6SN7GT 6K6GT 6AL5 6SN7GT 6BG6G 6W4GT 1B3GT 1B3GT 16AP4

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: 626 Ch= 120104BJ - Emerson Radio & Phonograph

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

• TV-Receiver mit 16" b/w CRT, US standard.

  Channels 2 thru 13.

  Alternative mit Tuner 470233 V1 6J6 V2 6J6 V3 6J6.

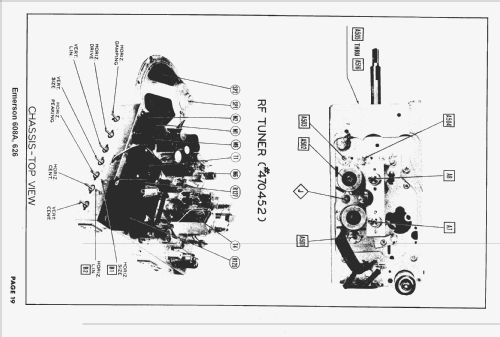

                       Tuner 470452 V1 6AG5 V2 6J6 V3 6J6.

• Mentioned in

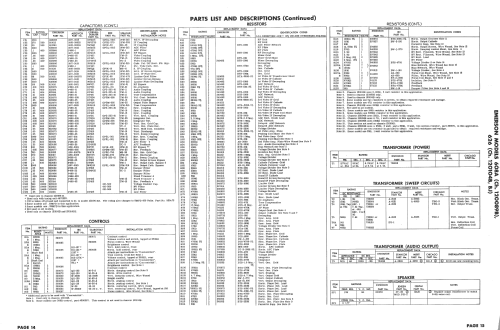

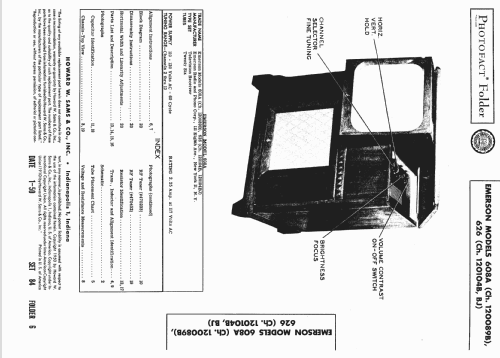

• Photofact Folder, Howard W. SAMS (Vol.9/50 Date 2-50 84-6 Set 84 Folder 6)

• Author
• Model page created by Friedrich Weber † 12.09.2014. See "Data change" for further contributors.
