• Country
• United States of America (USA)

• Manufacturer / Brand
• Emerson Radio & Phonograph Corp.; New York, NY

• Year
• 1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 205958

• • alternative name: Emerson Television

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors
• 2N485 2N485 2N483 2N483 2N363 2N363 2N633 2N633

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / AA: 4 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 888 "Atlas" Ch=120485 first run - Emerson Radio & Phonograph

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 104 x 160 x 50 mm / 4.1 x 6.3 x 2 inch

• Notes

• Beitman 1960, Vol. 20, page 36 lists this radio as model 880 Atlas. The description reads "These sets utilize an etched circuit board chassis 120374 and 120485 identified by part number 630225 and 630243 respectively. The part number can be found on the etched circuit board side of board. A paper label located on the external jack, containing the last three digits of the chassis number, is another means of identification." Image evidence of the paper label as well as of circuit boards leads us to the conclusion that Beitman has the model number wrong.

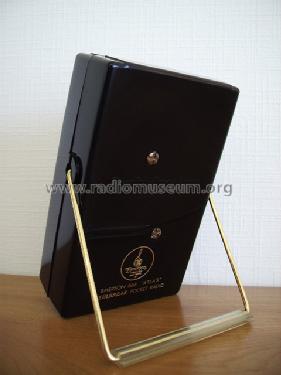

  Marking on back : NEVABREAK Pocket Radio

  Colors: Black,white,red,green,turquoise.

• Net weight (2.2 lb = 1 kg)
• 0.410 kg / 0 lb 14.4 oz (0.903 lb)

• Mentioned in
• Photofact Folder, Howard W. SAMS (Date October 1960, Set 502, Folder 8)

• Literature/Schematics (1)
• Beitman Radio Diagrams, Vol. 20, 1960

• Literature/Schematics (2)
• Transistor Radios 1954-68
