AX-212 "Bullseye" Ch= AX

• Country
• United States of America (USA)

• Manufacturer / Brand
• Emerson Radio & Phonograph Corp.; New York, NY

• Year
• 1938/1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 38768

• • alternative name: Emerson Television

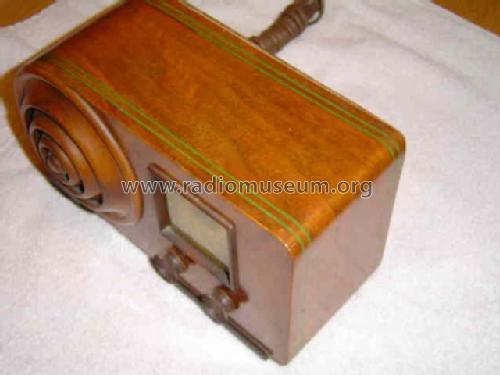

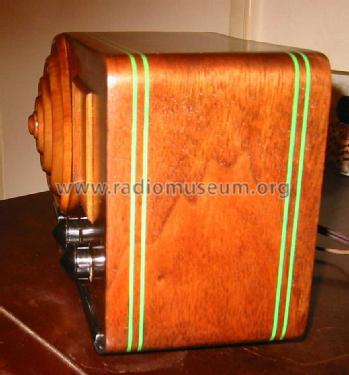

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A8 6K7 6Q7 25L6 25Z5

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 105-125 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 4 inch = 10.2 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: AX-212 "Bullseye" Ch= AX - Emerson Radio & Phonograph

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 9.37 x 5.5 x 4.75 inch / 238 x 140 x 121 mm

• Notes

• The Emerson model AX-212 receives the BC (540-1730kHz) band. It is supposed to have an Saknoffsky designed Ingraham cabinet. See a later and much nicer cabinet as model FL418 "Humpback Bullseye" or DQ315 with more information. Available in Walnut or Maple.

• Net weight (2.2 lb = 1 kg)
• 1.6 kg / 3 lb 8.4 oz (3.524 lb)

• Price in first year of sale
• 19.95 $

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Circuit diagram reference
• Rider's Perpetual, Volume 9 = 1938 and before

• Mentioned in
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Literature/Schematics (1)
• Table Top Radios Vol. 1 Stein 98

• Literature/Schematics (2)
• Machine Age to Jet Age II (page 42.)

• Literature/Schematics (3)
• Emerson Folder Form. 39-22, 2-39 for 1939.
