Favorit 69GW

• Country
• Germany

• Manufacturer / Brand
• Emud, Ernst Mästling; Ulm

• Year
• 1950/1951

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 1575

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• UF11 or UF6 UL2_Valvo

• Number of Transistors

• Semiconductors
• Tr.Gl.=Metal-rectif.

• Main principle
• TRF with regeneration; 1 AF stage(s)

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 120/220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch

• Material
• Bakelite case

• from Radiomuseum.org

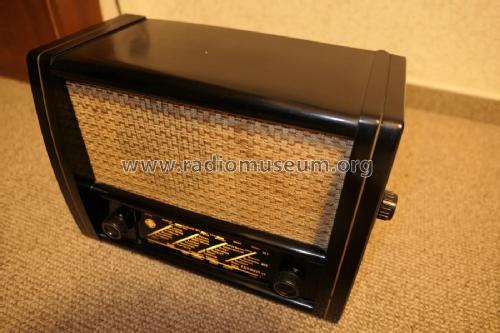

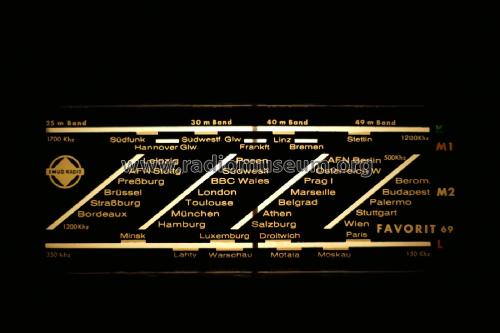

• Model: Favorit 69GW - Emud, Ernst Mästling; Ulm

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 295 x 215 x 150 mm / 11.6 x 8.5 x 5.9 inch

• Notes

• Der Mittelwellenbereich ist zweigeteilt: 530 bis 1200 kHz und 1200 bis 1700 kHz

• Price in first year of sale
• 69.00 DM

• Source of data
• Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange Schaltungen der Funkindustrie, Buch 3

• Mentioned in
• Funkschau (5017)

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
