Belaphon 4251W

Belaphon 4251W; EMW Elektro- (ID = 12175) Radio

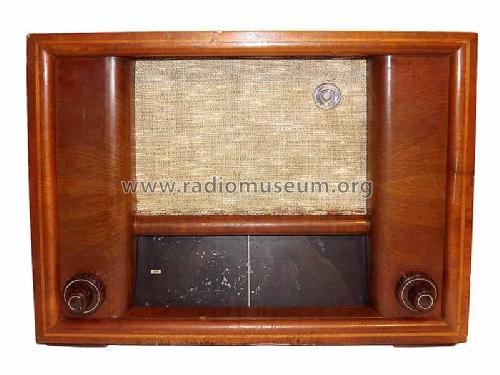

Belaphon 4251W; EMW Elektro- (ID = 752943) Radio Belaphon 4251W; EMW Elektro- (ID = 1592806) Radio

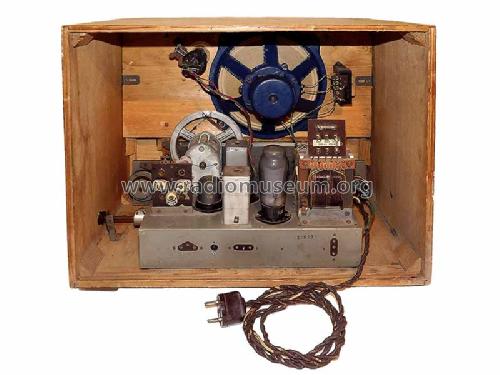

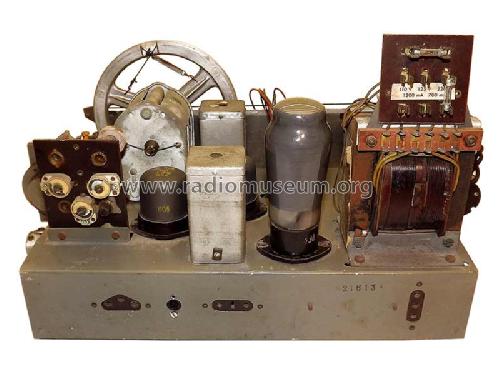

Belaphon 4251W; EMW Elektro- (ID = 1592807) Radio Belaphon 4251W; EMW Elektro- (ID = 1592808) Radio

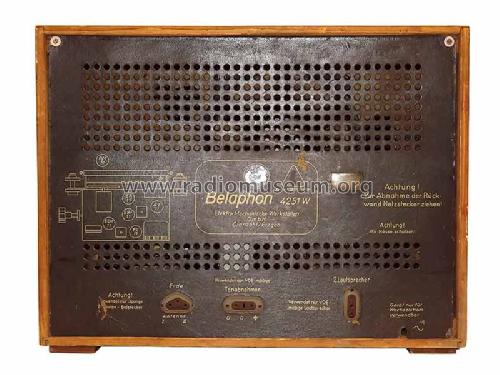

Belaphon 4251W; EMW Elektro- (ID = 1592809) Radio
Use red slider bar for more.
Belaphon 4251W; EMW Elektro- (ID = 752943) Radio

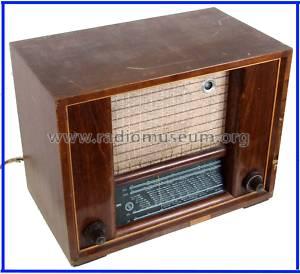

EMW Elektro-: Belaphon 4251W [Radio] ID = 752943 300x274
Select picture or schematic to display from thumbnails on the right and click for download.
For model Belaphon 4251W, EMW Elektro-Mechanische Werkstätten GmbH bzw. Antelmann KG; Cranzahl (Ostd.)

Country:  Germany
Manufacturer / Brand:  EMW Elektro-Mechanische Werkstätten GmbH bzw. Antelmann KG; Cranzahl (Ostd.)
Year: 1952/1953 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH11 EBF11 EF11 EL11 EM11 AZ11
Main principle Super-Heterodyne (Super in general); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 23.1 cm = 9.1 inch
Power out
from Radiomuseum.org Model: Belaphon 4251W - EMW Elektro-Mechanische Werkst
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 513 x 390 x 320 mm / 20.2 x 15.4 x 12.6 inch
Net weight (2.2 lb = 1 kg) 13 kg / 28 lb 10.1 oz (28.634 lb)
Collectors' prices
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Lange Schaltungen der Funkindustrie, Buch 3
Mentioned in Funkgeschichte der GFGF (9500)


All listed radios etc. from EMW Elektro-Mechanische Werkstätten GmbH bzw. Antelmann KG; Cranzahl (Ostd.)
Here you find 12 models, 8 with images and 6 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
