- Country
- Netherlands
- Manufacturer / Brand
- Erres, Van der Heem NV; Den Haag
- Year
- 1948/1949
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 18029

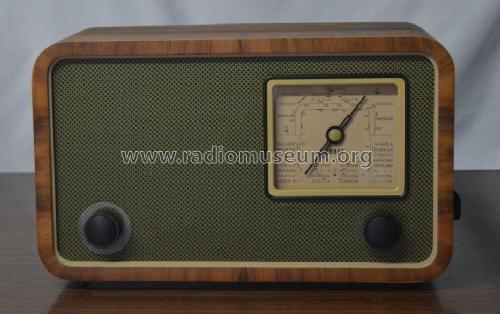

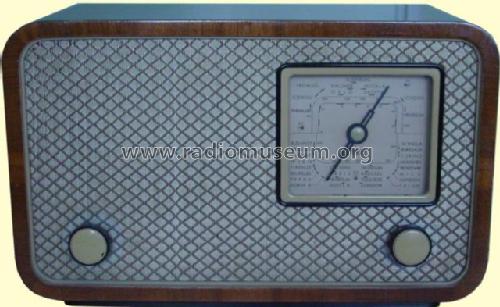

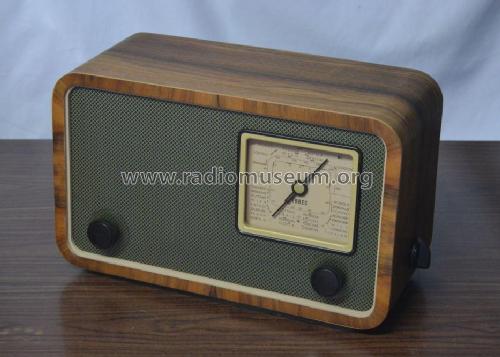

ERRES KY-485 (1948)
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- ZF/IF 452 kHz; 2 AF stage(s)
- Wave bands

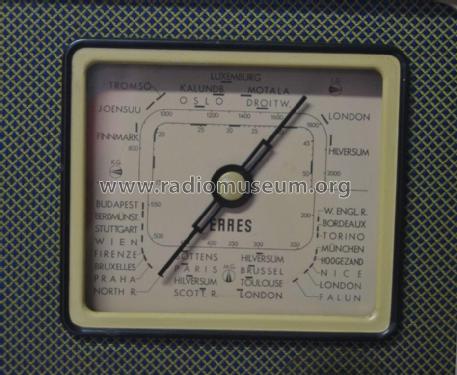

- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: KY485 - Erres, Van der Heem NV; Den
- Dimensions (WHD)
- 410 x 250 x 178 mm / 16.1 x 9.8 x 7 inch
- Net weight (2.2 lb = 1 kg)
- 6.5 kg / 14 lb 5.1 oz (14.317 lb)
- Price in first year of sale
- 215.00 NLG
- External source of data
- E. Erb 3-907007-36-0
- Circuit diagram reference
- Die «Thali Schemasammlung» führt das Modell.
- Mentioned in
- -- Original prospect or advert

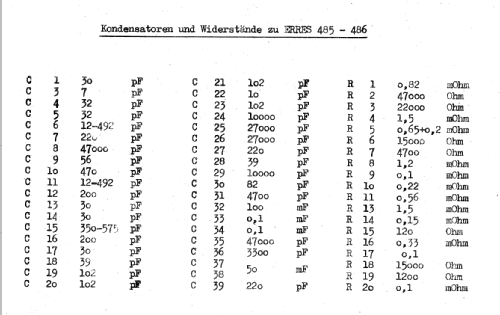

- Literature/Schematics (4)
- -- Schematic
