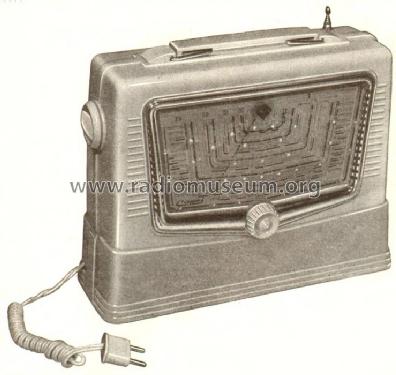

Ether-Capri
Etherlux-Radio; Paris
- Country
- France
- Manufacturer / Brand
- Etherlux-Radio; Paris
- Year
- 1957
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 138457
Radio Constructeur et Dépanneur 1957
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- Storage and/or dry batteries
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Ether-Capri - Etherlux-Radio; Paris
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 265 x 170 x 80 mm / 10.4 x 6.7 x 3.1 inch
- Notes
-
4 gammes d'ondes dont 1 bande étalée. Cadre antiparasites incorporé, antenne téléscopique.
Prevu pour fonctionnement sur courant alternatif par adjonction d'un socle d'alimentation.
Coffret en matière plastique, 3 coloris au choix: ivoire bordeaux, vert.
Poids sans piles. Équivalent au Amplix Capri Piles-Secteur (57).
- Net weight (2.2 lb = 1 kg)
- 1.790 kg / 3 lb 15.1 oz (3.943 lb)
- Literature/Schematics (1)
- Radio Constructeur et Dépanneur (1957)
- Author
- Model page created by Raynal Aufils. See "Data change" for further contributors.
