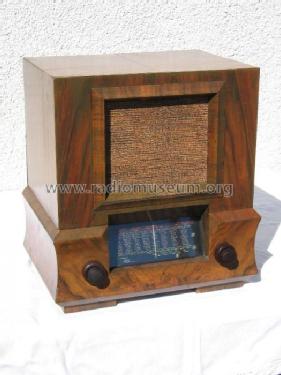

3043; Eumig, Elektrizitäts (ID = 312714) Radio
Eumig, Elektrizitäts: 3043 [Radio] ID = 312714 525x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model 3043, Eumig, Elektrizitäts und Metallwaren-Industrie-Gesellschaft mbH; Wien:
Eumig Type 3043

Country:  Austria
Manufacturer / Brand:  Eumig, Elektrizitäts und Metallwaren-Industrie-Gesellschaft mbH; Wien
Year: 1936/1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: KK2 KF3 KBC1 KL4
Main principle Super-Heterodyne (Super in general); ZF/IF 412 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Storage and/or dry batteries / 1,5 & 2 & 6 & 90-150 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
Power out
from Radiomuseum.org Model: 3043 - Eumig, Elektrizitäts und
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 370 x 390 x 270 mm / 14.6 x 15.4 x 10.6 inch
Notes   Beleuchtungslampe 2 Volt / 0,2 Ampere
Net weight (2.2 lb = 1 kg) 7.5 kg / 16 lb 8.3 oz (16.52 lb)
Price in first year of sale 320.00 öS
Collectors' prices
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Lange + Schenk
Literature/Schematics (1) -- Original-techn. papers.
