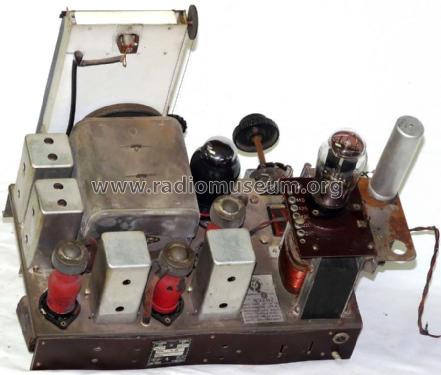

Eumig, Elektrizitäts: 4W [Radio] ID = 1230257 933x750

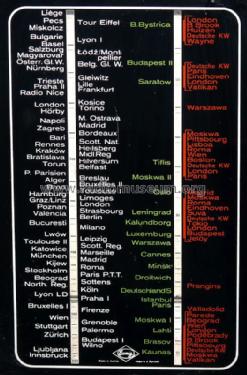

Select picture or schematic to display from thumbnails on the right and click for download.
For model 4W, Eumig, Elektrizitäts und Metallwaren-Industrie-Gesellschaft mbH; Wien

Country:  Austria
Manufacturer / Brand:  Eumig, Elektrizitäts und Metallwaren-Industrie-Gesellschaft mbH; Wien
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: EK2 EF5 EBC3 EL3 AZ1
Main principle Super-Heterodyne (Super in general); ZF/IF 128 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
Power out
from Radiomuseum.org Model: 4W - Eumig, Elektrizitäts und
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 410 x 320 x 265 mm / 16.1 x 12.6 x 10.4 inch
Net weight (2.2 lb = 1 kg) 14 kg / 30 lb 13.4 oz (30.837 lb)
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Lange + Schenk


All listed radios etc. from Eumig, Elektrizitäts und Metallwaren-Industrie-Gesellschaft mbH; Wien
Here you find 249 models, 209 with images and 168 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
