Darling 2275
ID = 8324
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Eumig, Elektrizitäts: Darling 2275 [Radio] ID = 295240 640x480
| Country: Austria | Manufacturer/Brand: Eumig, Elektrizitäts und Metallwaren-Industrie-Gesellschaf... |
| Year: 1926 – 1928 | Type: Radio or Tuner |
| Valves / Tubes | 2: |
|---|---|
| schematic requested | |
| Principle | TRF with reaction (regenerative); 1 AF-stage(s); something special ? Please give information (notes) |
|---|---|
| Tuned circuits | 1 AM circuit(s); |
| Wave bands | Broadcast only (MW). |

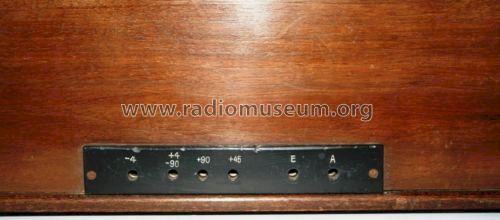

| Power type and voltage | Batteries (storage and/or dry) |
| Loudspeaker/pwr.out | - For headphones or amp. |
| from Radiomuseum.org | Model: Darling 2275 |
| Material | Wooden case |
| Notes | Reinartz-Empfänger |

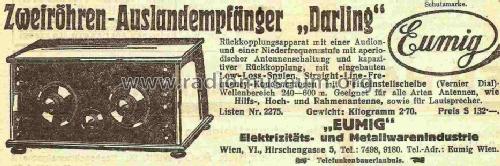

| Picture reference | Das Modell ist im «Radiokatalog» (Erb) abgebildet. |
All listed radios etc. from Eumig, Elektrizitäts und Metallwaren-Industrie-Gesellschaft mbH; Wien
Here you find 210 models, 170 with images and 152 with schematics.
Collection of Alois Steiner (A)
