170-A

170-A ; Fada Radio & (ID = 283075) Radio 170-A ; Fada Radio & (ID = 704362) Radio
170-A ; Fada Radio & (ID = 704363) Radio 170-A ; Fada Radio & (ID = 704364) Radio
170-A ; Fada Radio & (ID = 704365) Radio
Use red slider bar for more.

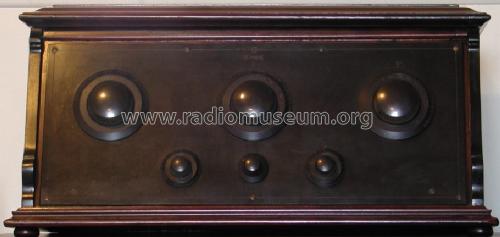

170-A ; Fada Radio & (ID = 283075) Radio
Fada Radio &: 170-A [Radio] ID = 283075 910x432
Select picture or schematic to display from thumbnails on the right and click for download.
For model 170-A, Fada Radio & Electric Co.; Long Island (NY)

Country:  United States of America (USA)
Manufacturer / Brand:  Fada Radio & Electric Co.; Long Island (NY)
alternative name

Andrea-Radio || Nater, Henri, Atlanta-Radio; Zürich
Year: 1925 Type: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5:
Principle TRF without reaction (non reg.dir.receiver); Neutrodyne
Tuned circuits 3 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: 170-A - Fada Radio & Electric Co.;
Material Wooden case
Shape Tablemodel, slant panel.
Dimensions (WHD) 24 x 12 x 16 inch / 610 x 305 x 406 mm
Notes

Three dials (primary tuning control knobs)

Price in first year of sale 125.00 $
Collectors' prices
External source of data Ernst Erb
Source of data Radio Collector`sGuide 1921-
Mentioned in Guide to old Radios,Johnson 1989
