Model: 652 Temple
Antique radios, Old Time Radios
652 Temple
Country:
United States of America (USA)
Manufacturer/Brand:
Fada Radio & Electric Co.; Long Island (NY)
Year: 1946
Type:
Radio or TunerBroadcast receiver (Radio).
Im Gegensatz zu Radioempfängern für kommerzielle und/oder militärische Zwecke und den frühen Empfängern für Morsezwecke nennen wir hier Radio bzw. Rundfunkempfänger. Aber: Gemäss internationaler Sprachregelung führt der Radiokatalog Band 1 alle Empfänger mit aktiven Bauteilen als RADIO. Wir unterscheiden hier ebenfalls nicht, ob mit Röhren bestückt, hybrid, mit Transistoren oder/und ICs.
Mod.-ID = 39652
previous
|
Result List
|
next
|
New search for Radios etc.
Schematics etc.: 6 (for
members)
Principle
Superhet with RF-stage; IF-Freq. 456 kHz; 2 AF-stage(s)Superhet with a preamplification stage.
Please use «To add informations to model» if you know more! Thanks.
Récepteur TSF superhétérodyne avec préamplification de HF.
Superhet mit HF-Vorstufe.
Tuned circuits
6 AM circuit(s);
Wave bands
Broadcast only (MW).Mittelwellenempfänger
Power type and voltage
AC/DC-set / 117 VoltAC-DC set (all-mains) - sometimes plus voltage range:
/ = 2 different voltages
- = voltage from-to
* = «Special»
Attention: Chassis mostly connected to deadly high tension!
Apparareil à tous-courants. Tensions mentionnées.
Wechsel- und Gleichstrom:
/ = 2 Spannungswahlen
- = von-bis
* = Fabrikwahl
Vorgeschalteten Trenntrafo verwenden! Chassis oft unter Starkstrom stehend!
Loudspeaker/pwr.out
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)Permanent magnet type moving coil speaker (principle by Rice-Kellog, without field excitation coil).
Haut-parleur avec système dynamique à aimant permanent (sans bobine d`excitation).
Permanentdynamischer Lautsprecher, also (modernes) Tauchspulenprinzip mit Selbsterregung bzw. Permanentmagnet statt Magnetspule. Siehe «Radios von gestern» Seiten 329ff.
/ Ø 10.2 cm = 4 inch
www.radiomuseum.org
Model: 652 Temple
Material
Cataline
Shape
Tablemodel, with any shape - general.
Dimensions (WHD)
11 x 6.75 x 6 inch / 279 x 171 x 152 mm
Valves / Tubes
6:
14A7
(more
for members)
Notes
BC (530 -1680 kHz) band with built-in loop antenna.
Collectors prices
1 Collector price
(for members)
External source of data
Ernst Erb
Source of data
The Radio CollectorGrinder, 1995The Radio Collectors Directory and Price Guide by Robert E. Grinder, Sonoran Publishing, LLC, USA: Is one of the best books for your information as a radio collector.
Circuit diagram reference
Rider's Perpetual, Volume 15Ave, RD 2, Canandaigua, NY 14424-9564, USA.
For your information:
Other big collections of schematics for the USA are the books «Most-Often-Needed Radio Diagrams», compiled by M.N.BEITMAN (beginning: 1926-1938 = Vol. 1).
and folders from:
Howard W. Sams Company, 2647 Waterfront Parkway East Drive, Indianapolis, IN 46214-2041, Tel.: 1-800-GET-SAMS or 1-800-428-5331 or 7267.
Mentioned in
Collector's Guide to AR4.Ed.,Bunis, tubeCollectors Guide to Antique Radios, Fourth Edition, 1997, Marty & Sue Bunis, Collector Books, Paducah, USA. See also the other editions.
Literature/Schematics
Photofact Folders, SamsPhotofact Folders, Howard W. Sams. Normally referenced in schematics but when there is more ... (select the last field and enter the number in the free field).
(Set 1, Folder 461-23)
Fada 652 Catalin (1946) side-view copy from Ebay seller catalinradio
Fada 652 Catalin (1946)back-view copy from Ebay seller catalinradio

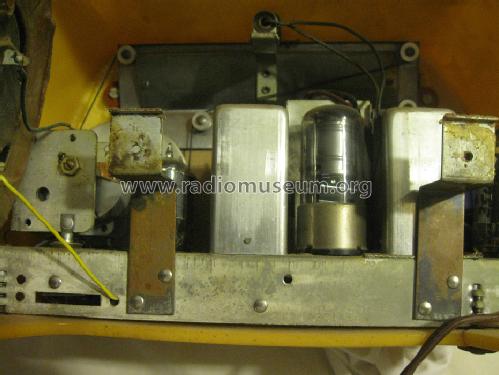

Fada 652 Catalin (1946)bottom-view copy from Ebay seller catalinradio
More pictures
No further information
on
652 Temple (Fada Radio & Electric Co.; Long Island (NY))
