• Year
  • 1950 ?
perfect model
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 252484
    • alternative name: Andrea-Radio || Nater, Henri, Atlanta-Radio; Zürich

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • AC/DC-set / 105 - 125 = 117 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
  • Power out
  • 2 W (max.)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: 855V "Coloradio" - Fada Radio & Electric Co.;
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 8.75 x 5.75 x 5.375 inch / 222 x 146 x 137 mm
  • Notes

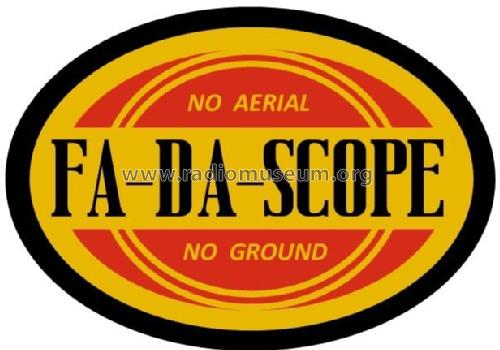

  • The Fada models 855 have an Alnico V Dynamic Speaker and a "Fadascope" (Fada-Scope) loop antenna. Power consumption is 30 watts with line voltage surge arrester. Tuning range 530 to 1680 kc (566 to 184 metres). 4.5 inch illustrated slide rule dial with large readable numbers with Ruby Fluorescent Glow Pointer. Reduction drive tuning with ratio 9 to 1.

    The Fada 855 was available in 3 different colors: as model 855W in walnut, as model 855V in ivory and as model 855M in maroon. See also model Fada 550. The same documentation shows modelss 855, 845 and 830. An other shows models 200, 550, P86 and models 660, together with TVs model PC21. This is a notice for the model years which are yet uncertain.

  • Net weight (2.2 lb = 1 kg)
  • 3.75 lb (3 lb 12 oz) / 1.703 kg
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 20 covering 1950
  • Author
  • Model page created by Ernst Erb. See "Data change" for further contributors.
