• Year
  • 1924
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 39434
    • alternative name: Andrea-Radio || Nater, Henri, Atlanta-Radio; Zürich

 Technical Specifications

  • Number of Tubes
  • 5
  • Valves / Tubes
  • Main principle
  • TRF without regeneration; Neutrodyne
  • Tuned circuits
  • 3 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Storage and/or dry batteries
  • Loudspeaker
  • -Loudspeaker incorporated, but system not known.
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 185-A Neutrola - Fada Radio & Electric Co.;
  • Shape
  • Tablemodel, low profile (big size).
  • Notes
  • Three dials (primary tuning control knobs)
  • Price in first year of sale
  • 270.00 $
  • External source of data
  • Ernst Erb
  • Literature/Schematics (1)

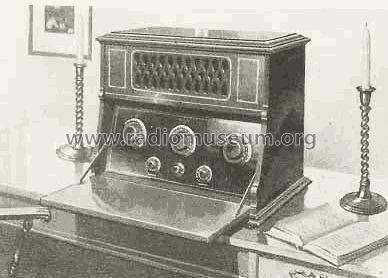

  • Radio Broadcast adv., Dec. 1924, p. 307
