• Year
  • 1938/1939
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 236741

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 472 kHz
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC)
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 21 cm = 8.3 inch
  • Material
  • Wooden case
  • from Radiomuseum.org

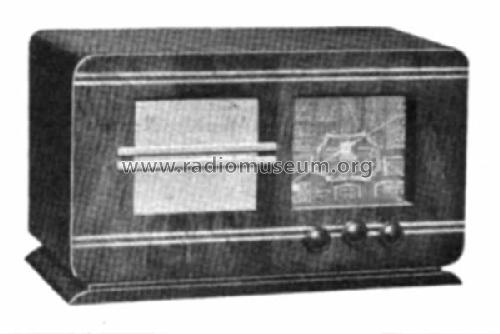

  • Model: 517 [3 boutons] - Familial Radio, G. Dubois;
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 514 x 285 x 255 mm / 20.2 x 11.2 x 10 inch
  • Notes
  • 3 gammes d'ondes de 18 à 2000 mètres. Version 50 Hz.

    Ébénisterie avec 3 boutons en façade.

  • Mentioned in
  • -- Original prospect or advert
