Federal Jr. (Junior) Crystal Receiver

Federal Jr. Crystal Receiver; Federal Radio Corp., (ID = 46536) Crystal Federal Jr. Crystal Receiver; Federal Radio Corp., (ID = 197826) Crystal
Federal Jr. Crystal Receiver; Federal Radio Corp., (ID = 197827) Crystal Federal Jr. Crystal Receiver; Federal Radio Corp., (ID = 209683) Crystal
Federal Jr. Crystal Receiver; Federal Radio Corp., (ID = 209692) Crystal Federal Jr. Crystal Receiver; Federal Radio Corp., (ID = 209695) Crystal
Federal Jr. Crystal Receiver; Federal Radio Corp., (ID = 266806) Crystal Federal Jr. Crystal Receiver; Federal Radio Corp., (ID = 998320) Crystal
Federal Jr. Crystal Receiver; Federal Radio Corp., (ID = 1085046) Crystal Federal Jr. Crystal Receiver; Federal Radio Corp., (ID = 1085047) Crystal
Use red slider bar for more.
Federal Jr. Crystal Receiver; Federal Radio Corp., (ID = 46536) Crystal
Federal Radio Corp.,: Federal Jr. Crystal Receiver [Crystal] ID = 46536 400x300
Select picture or schematic to display from thumbnails on the right and click for download.
For model Federal Jr. (Junior) Crystal Receiver, Federal Radio Corp.,(Telephone & Telegraph); Buffalo (NY):
Detektor

Country:  United States of America (USA)
Manufacturer / Brand:  Federal Radio Corp.,(Telephone & Telegraph); Buffalo (NY)
alternative name

Federal Recorder || Federal Tel. & Radio || Federal T&T
Brand
Orthosonic / Ortho-Sonic
Year: 1922 Type: Crystal set (or Diode-Radio)
Principle Crystal Detection
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage No Power needed
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Federal Jr. Crystal Receiver - Federal Radio Corp.,Telephone
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 8.5 x 8.8 x 6 inch / 216 x 224 x 152 mm
Notes There is also a matching Federal Jr.Amp.
Crystal Receiver starting price of 25USD was later reduced to 20 USD;
Price in first year of sale 25.00 $
Collectors' prices
External source of data Ernst Erb
Source of data Radio Collector`sGuide 1921-
Mentioned in Radio Manufacturers of the 1920s, Vol 1, Alan Douglas
Literature/Schematics (1) Radio Broadcast, June 1922, page 184
Literature/Schematics (2) Radio Digest Illustrated, 1922 Aug. 26, p. 9

All listed radios etc. from Federal Radio Corp.,(Telephone & Telegraph); Buffalo (NY)
Here you find 190 models, 63 with images and 127 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.




Forum contributions about this model
Federal Radio Corp.,: Federal Jr. Crystal Receiver
Threads: 2 | Posts: 3
Hits: 694     Replies: 1
federal-ra: Crystal Receiver; Federal Jr.
Sam Pasternack
20.Feb.07
  1 I recently purchased a Federal Jr. crystal set at a radio meet. There are five binding posts on the top--a group of two and a group of three. Can someone tell me which posts are for headphones--the two?-- and which are for antenna and ground? Thank you.
Reiner Scholz
20.Feb.07
  2 The group of 2 are for headphones. Looking at the set from "ANTENNAE"  site  the group of 2 to the right are for headphones. In the group of 3 posts the 2 from above are for antennae and the lower one is earth.
View the pictures here in RMORG. Type in Federal jr as model name.

Hits: 510     Replies: 0
federal-ra: ; FederalJr
Reiner Scholz
01.May.06
  1

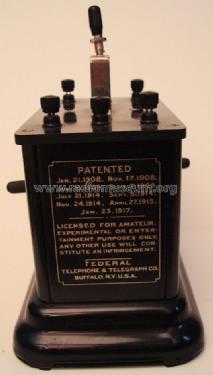

The very early model was made of brass. Another hint for early models is a label at one of the small sides, showing all the  patents, applied to this unit.
