• Year
  • 1966
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 109344

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 470 kHz
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Dry Batteries / 9 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

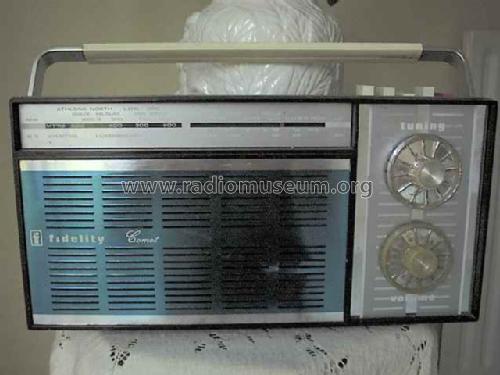

  • Model: Comet - Fidelity Radio Co. Ltd.;
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Notes
  • .
  • Source of data
  • -- Collector info (Sammler)
  • Author
  • Model page created by John Koster. See "Data change" for further contributors.
