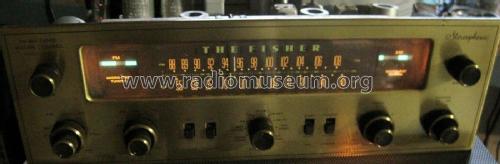

FM-AM Tuner Master Control 100-T
Fisher Radio; New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Fisher Radio; New York (NY)
- Year
- 1959 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 150875
Sams photofact.
Service Manual

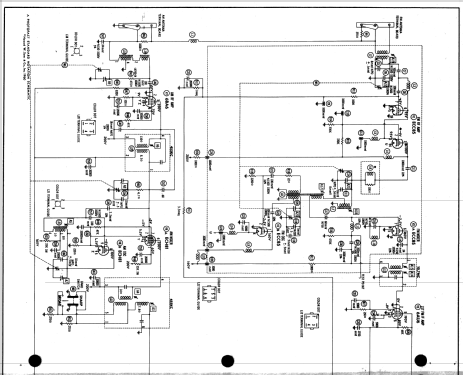

Click on the schematic thumbnail to request the schematic as a free document.

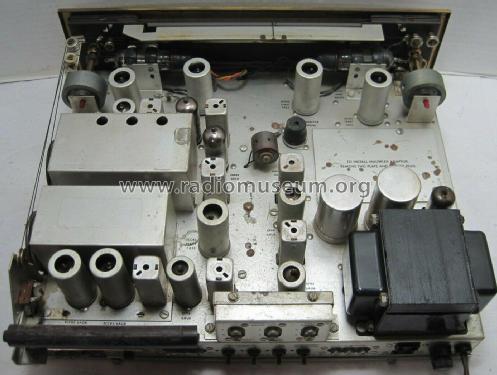

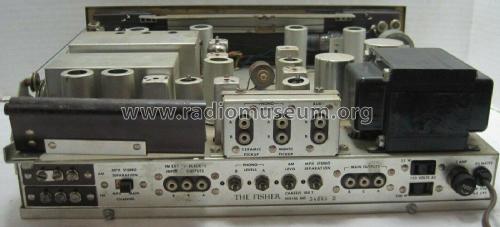

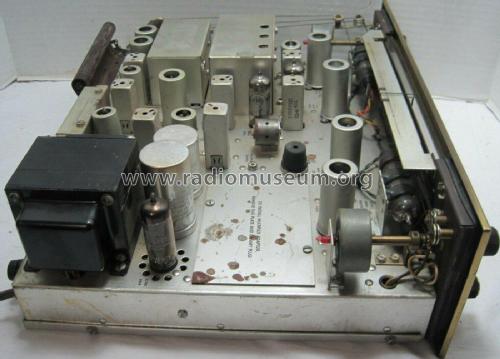

- Number of Tubes
- 16

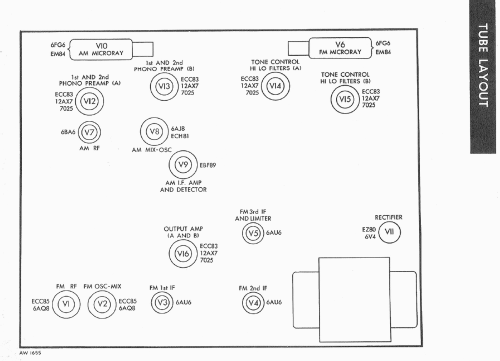

- Valves / Tubes
- ECC85 ECC85 6AU6 6AU6 EM84 EM84 6AU6 6BA6 ECH81 EBF89 ECC83 ECC83 ECC83 ECC83 ECC83 EZ80
- Number of Transistors
- Semiconductors
- 1N541 1N541 Selenium-Rectifier
- Main principle
- Superhet with RF-stage; ZF/IF 455/10700 kHz; 5 AF stage(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Hi-Fi equipment
- Power type and voltage
- Alternating Current supply (AC) / 105 - 120 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: FM-AM Tuner Master Control 100-T - Fisher Radio; New York NY
- Shape
- Chassis only or for «building in»
- Notes
-
Tuner & Stereo Preamplifier, with independent AM and FM sections for "Simulcast" AM-FM-Stereo; optional FM Multiplex Adaptor MPX-20 (Crosby system) or MPX-50 (standard).
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 493 folder 7 date 7-60)
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
