• Year
  • 1957 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 138779

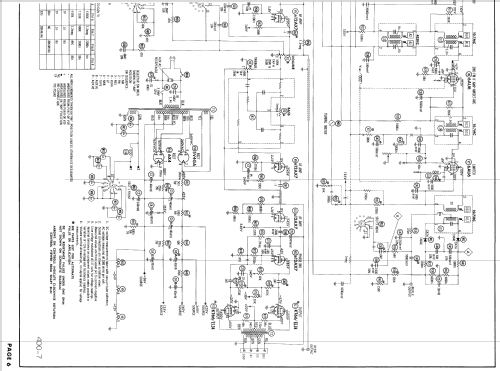

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 14
  • Main principle
  • Superhet with RF-stage; ZF/IF 460/10700 kHz
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 30 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 500 - Fisher Radio; New York NY
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 13.43 x 6.125 x 12.375 inch / 341 x 156 x 314 mm
  • Notes
  • Fisher model 500 is an AC operated FM-AM receiver.

  • Net weight (2.2 lb = 1 kg)
  • 26 lb 0 oz (26 lb) / 11.804 kg
  • Price in first year of sale
  • 250.00 $
  • Mentioned in
  • -- Original prospect or advert
