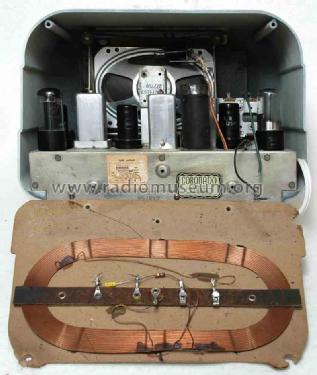

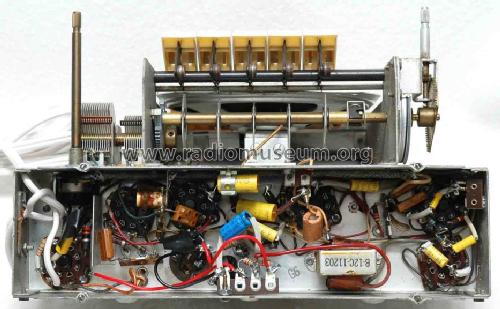

Model: 43-8354 (438354)
Antique radios, Old Time Radios
43-8354 (438354)
Country:
United States of America (USA)
Manufacturer/Brand:
Gamble-Skogmo, Inc.; Minneapolis (MN)
Year: 1947
Type:
Radio or TunerBroadcast receiver (Radio).
Im Gegensatz zu Radioempfängern für kommerzielle und/oder militärische Zwecke und den frühen Empfängern für Morsezwecke nennen wir hier Radio bzw. Rundfunkempfänger. Aber: Gemäss internationaler Sprachregelung führt der Radiokatalog Band 1 alle Empfänger mit aktiven Bauteilen als RADIO. Wir unterscheiden hier ebenfalls nicht, ob mit Röhren bestückt, hybrid, mit Transistoren oder/und ICs.
Mod.-ID = 41266
previous
|
Result List
|
next
|
New search for Radios etc.
Schematics etc.: 1 (for
members)
Principle
Superhet with RF-stage; IF-Freq. 455 kHz; 2 AF-stage(s)Superhet with a preamplification stage.
Please use «To add informations to model» if you know more! Thanks.
Récepteur TSF superhétérodyne avec préamplification de HF.
Superhet mit HF-Vorstufe.
Tuned circuits
6 AM circuit(s);
Wave bands
Broadcast only (MW).Mittelwellenempfänger
Power type and voltage
AC/DC-set / 105 - 125 VoltAC-DC set (all-mains) - sometimes plus voltage range:
/ = 2 different voltages
- = voltage from-to
* = «Special»
Attention: Chassis mostly connected to deadly high tension!
Apparareil à tous-courants. Tensions mentionnées.
Wechsel- und Gleichstrom:
/ = 2 Spannungswahlen
- = von-bis
* = Fabrikwahl
Vorgeschalteten Trenntrafo verwenden! Chassis oft unter Starkstrom stehend!
Loudspeaker/pwr.out
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - ellipticalPermanent magnetic dynamic loudspeaker (moving-coil) in elliptical form - without field excitation coil. Haut parleur elliptique avec système dynamique (sans bobine d`excitation).
Permanent-dynamischer Ovallautsprecher (elliptisch, ohne Erregerspule für das Magnetfeld).
/ 0.65 W
www.radiomuseum.org
Model: 43-8354 (438354)
Material
Modern plastics (no Bakelite or Catalin)Plastic case - not bakelite.
Caisse en plastique - pas en bekelite!
Moderner Kunststoff im Gegensatz zu Materialien wie Bakelit, Philit etc.
Shape
Tablemodel, with any shape - general.
Valves / Tubes
6:
12SK7GT
(more
for members)
Collectors prices
1 Collector price
(for members)
External source of data
Ernst Erb
Source of data
The Radio CollectorGrinder, 1995The Radio Collectors Directory and Price Guide by Robert E. Grinder, Sonoran Publishing, LLC, USA: Is one of the best books for your information as a radio collector.

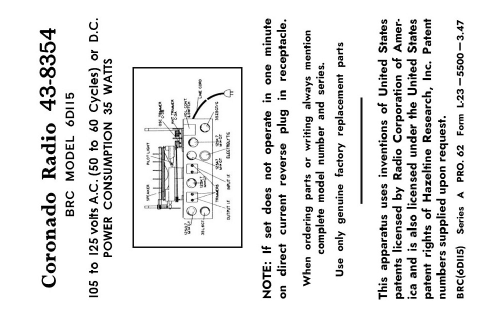

Circuit diagram reference

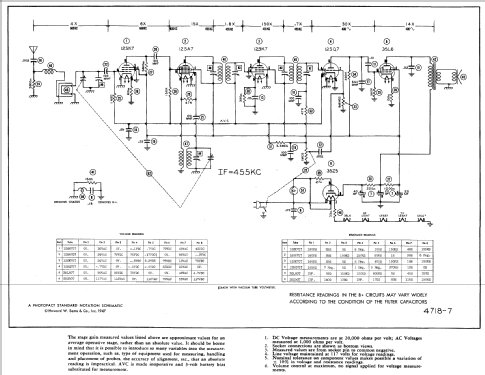

Beitman Radio Diagrams Vol. 8, 1948Most-often-needed Radio Diagrams and Servicing Information, Compiled by M.N. Beitman, Supreme Publications. Al least some of the Books have been reprinted by Vintage Radio Co., P.O.Box 2045, Palos Verdes, CA 90274, USA.
Literature/Schematics
Rider's Perpetual, Volume 22The Riders Perpetual contains 23 volumes of schematics. They can be ordered at: Alton H. Bowman, 4172 East Ave, RD 2, Canandaigua, NY 14424-9564, USA.
For your information:
Other big collections of schematics for the USA are the books «Most-Often-Needed Radio Diagrams», compiled by M.N.BEITMAN (beginning: 1926-1938 = Vol. 1).
No further information
on
43-8354 (438354) (Gamble-Skogmo, Inc.; Minneapolis (MN))
