Coronado 43-9201

Coronado 43-9201 ; Gamble-Skogmo, Inc.; (ID = 365903) Radio

Coronado 43-9201 ; Gamble-Skogmo, Inc.; (ID = 365904) Radio

Coronado 43-9201 ; Gamble-Skogmo, Inc.; (ID = 365906) Radio

Coronado 43-9201 ; Gamble-Skogmo, Inc.; (ID = 472490) Radio

Coronado 43-9201 ; Gamble-Skogmo, Inc.; (ID = 472491) Radio

Coronado 43-9201 ; Gamble-Skogmo, Inc.; (ID = 472492) Radio

Coronado 43-9201 ; Gamble-Skogmo, Inc.; (ID = 472493) Radio
Coronado 43-9201 ; Gamble-Skogmo, Inc.; (ID = 472489) Radio
Use red slider bar for more.
Coronado 43-9201 ; Gamble-Skogmo, Inc.; (ID = 472489) Radio
Gamble-Skogmo, Inc.;: Coronado 43-9201 [Radio] ID = 472489 714x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Coronado 43-9201, Gamble-Skogmo, Inc.; Minneapolis (MN); Coronado Mfg.Co.:
SAMS Photofact reference picture.

Country:  United States of America (USA)
Manufacturer / Brand:  Gamble-Skogmo, Inc.; Minneapolis (MN); Coronado Mfg.Co.
Brand

Coronado
Year: 1946/1947 Type: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BD6 12AT6 50B5 35W4
Principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 105-125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Coronado 43-9201 - Gamble-Skogmo, Inc.;
Material Wooden case
Shape Tablemodel, with any shape - general.
Notes The Coronado model 43-9201 is an AC operated phono-radio combination with a loop antenna and oval loudspeaker with diameter 3-7/8 " x 6".
Collectors' prices
External source of data Ernst Erb
Source of data The Radio CollectorGrinder, 1995
Circuit diagram reference Rider's Perpetual, Volume 17 = 1948 and before
Mentioned in Collector's Guide to AR7.Ed. Slusser tube (see under Coronado)

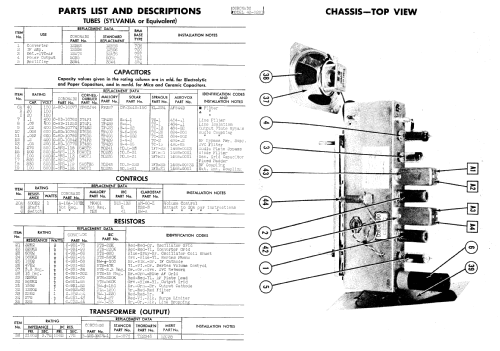

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 9/47, Set 24, Folder 4714-14)
