• Country
• United States of America (USA)

• Manufacturer / Brand
• Gamble-Skogmo, Inc.; Minneapolis, MN

• Year
• 1956 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 283491

• • Brand: Coronado

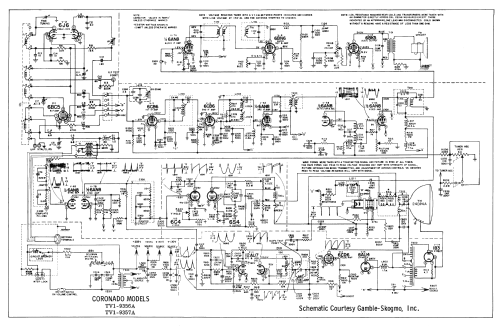

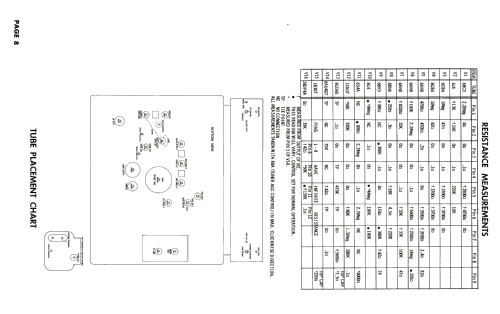

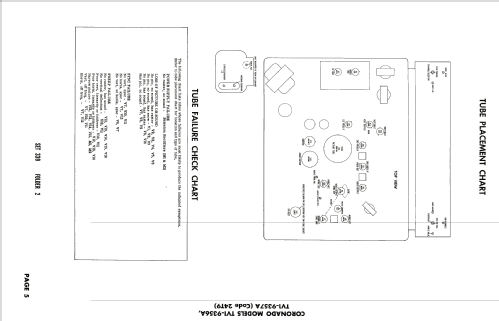

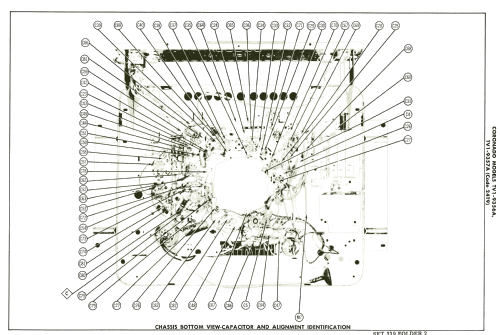

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 16

• Valves / Tubes
• 6BC5 6J6 6CB6 6CB6 6AN8 6AN8 6AN8 6BN6 6BK6 6C4 6S4A or 6S4 12AU7 6CD6G 6AU4GT 1B3GT 24DP4A

• Main principle
• Superhet with RF-stage

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 60 cycle 105-115 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: Coronado TV1-9356A Code 24T9 - Gamble-Skogmo, Inc.;

• Shape
• Console, Highboy (legs > 50 %).

• Notes

• CORONADO model TV1-9356A Code 24T9 is a 24" b/w TV with US standard VHF Tuner channels 2 thru 13 equipped with picture tube 24DP4A.



• Literature/Schematics (1)

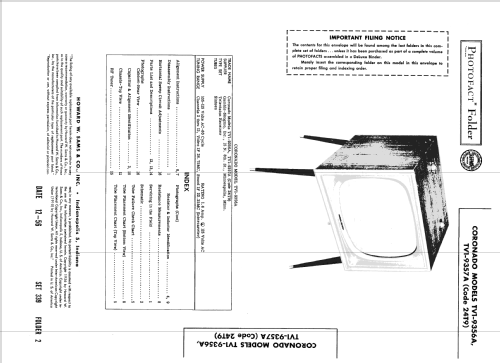

• Photofact Folder, Howard W. SAMS (Set 339 Folder 2 dated 12-56)

• Literature/Schematics (2)
• Photofact Folder, Howard W. SAMS (Set 317 Folder 16-S)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.

• Other Models

• Here you find 689 models, 322 with images and 618 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Gamble-Skogmo, Inc.; Minneapolis, MN
