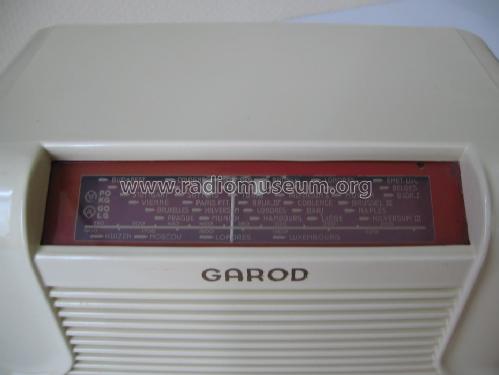

125-Z Export (Belgium)

Garod Radio Corp.; Brooklyn (NY)

  • Year
  • 1948
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 182284

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; Export model
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • AC/DC-set / 110 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
  • Material
  • Bakelite case
  • from Radiomuseum.org
  • Model: 125-Z Export - Garod Radio Corp.; Brooklyn NY
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 260 x 190 x 150 mm / 10.2 x 7.5 x 5.9 inch
  • Notes
  • Export model for Belgium (PO-GO; KG-LG).
    Built in loop antenna.
  • Author
  • Model page created by Jos van den Broek. See "Data change" for further contributors.
