• Country
• Norway

• Manufacturer / Brand
• Gastor; Oslo

• Year
• 1949

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 82869

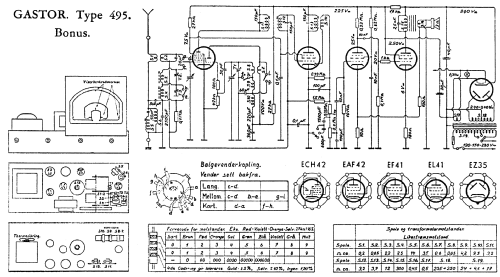

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH42 EAF42 EF41 EL41 EZ35

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 120, 150, 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 15 cm = 5.9 inch

• Material
• Wooden case

• from Radiomuseum.org

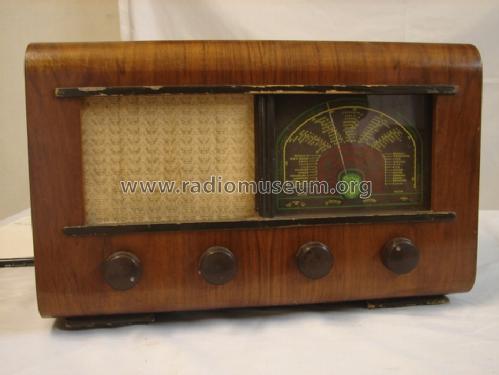

• Model: Bonus 495 - Gastor; Oslo

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 420 x 260 x 180 mm / 16.5 x 10.2 x 7.1 inch

• Net weight (2.2 lb = 1 kg)
• 6.9 kg / 15 lb 3.2 oz (15.198 lb)

• Price in first year of sale
• 269.00 NKr

• Literature/Schematics (1)
• -- Collector info (Sammler)

• Author
• Model page created by Ernst Rykkje. See "Data change" for further contributors.
