• Country
• Italy

• Manufacturer / Brand
• Geloso SA; Milano

• Year
• 1970 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 136675

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 11

• Semiconductors
• BF244 or. BF245 BF244 or. BF245 BC149 or. BC109 BC149 or. BC109 BC149 or. BC109 BC147 or. BC107 AC128 AC128 AD149 40363 40363 BY126

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 50/60 Hz: 110-240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 60 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

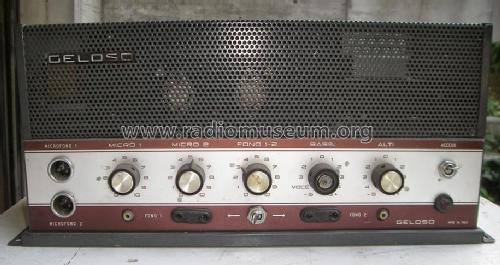

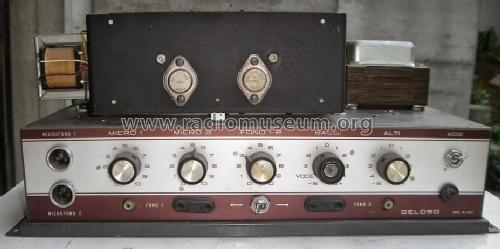

• Model: G1/2060-A - Geloso SA; Milano

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 320 x 190 x 220 mm / 12.6 x 7.5 x 8.7 inch

• Notes

• Amplificatore dotato di due ingressi per microfono, due ingressi per fono inseribili in alternativa e controlli continui per frequenze basse ed alte. impedenze di uscita 4-8-16-125-500 ohm e 70 V costanti (90 ohm). Potenza di uscita 60-75 Watt
  Transistors with suffix: BF244B BF244B.

  I diodi BY126 sono 10, 8 dei quali collegati in doppio ponte in parallelo.
  Le tensioni di alimentazione indicate sul cambiotensioni non corrispondono nè allo schema nè alla targhetta e sono: 50/60 Hz: 125; 160; 220; 240.

• Net weight (2.2 lb = 1 kg)
• 11 kg / 24 lb 3.7 oz (24.229 lb)

• Literature/Schematics (1)
• Bollettino Tecnico Geloso (n. 112-113, 1970)

• Author
• Model page created by Giuseppe Antonio Tusini. See "Data change" for further contributors.
