• Year
  • 1941 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 113083

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 140; 160; 220; 280 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 22 cm = 8.7 inch
  • Material
  • Wooden case
  • from Radiomuseum.org

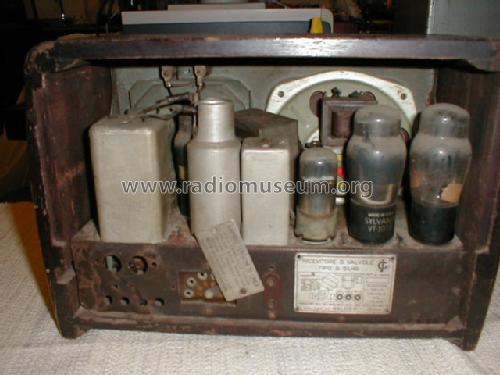

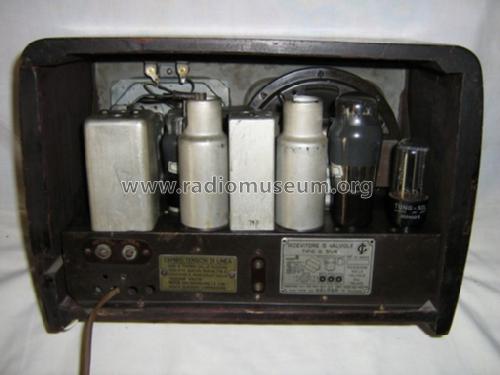

  • Model: G51/45 - Geloso SA; Milano
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 350 x 235 x 180 mm / 13.8 x 9.3 x 7.1 inch
  • Literature/Schematics (1)
  • -- Schematic
  • Author
  • Model page created by Alessandro De Poi. See "Data change" for further contributors.
