• Country
• Italy

• Manufacturer / Brand
• Geloso SA; Milano

• Year
• 1966 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 117539

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• AF114 AF115 AF116 AF116 AF116 AF116 AC127 AC126 AC127 AC128 BA102 OA81 OA81 AA119 AA119 BA114

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 5 AM circuit(s)     12 FM circuit(s)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Dry Batteries / 6 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Material
• Various materials

• from Radiomuseum.org

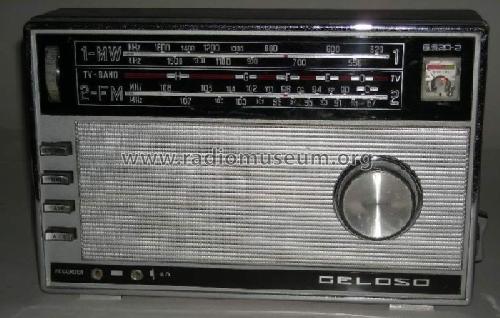

• Model: G520/2 - Geloso SA; Milano

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 310 x 200 x 110 mm / 12.2 x 7.9 x 4.3 inch

• Notes

• Gruppo AF: 2632. Gruppo FM: 2769/1.
  Gamme d'onda: OM, FM, canali audio TV VHF. Mobile in legno e metallo.
  Prezzo 1969: 75.000 ITL.

  Wave bands: MW, FM, TV VHF channels C and D-H.

• Net weight (2.2 lb = 1 kg)
• 5.3 kg / 11 lb 10.8 oz (11.674 lb)

• Literature/Schematics (1)

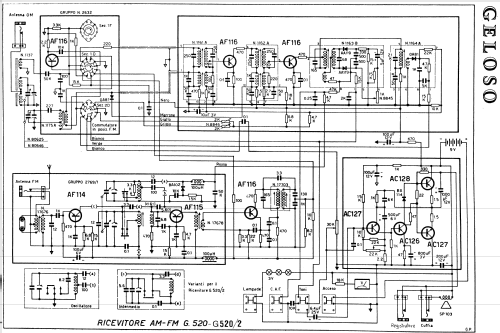

• -- Schematic

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
