G682

G682; Geloso SA; Milano (ID = 1120765) R-Player G682; Geloso SA; Milano (ID = 1120766) R-Player
G682; Geloso SA; Milano (ID = 1663896) R-Player G682; Geloso SA; Milano (ID = 1663897) R-Player
Use red slider bar for more.

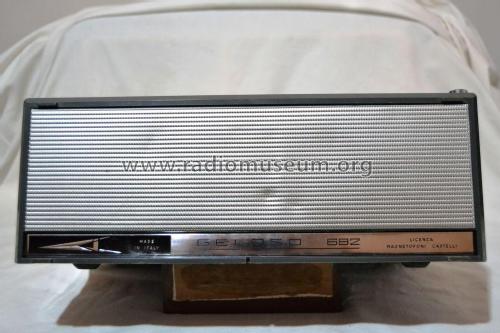

G682; Geloso SA; Milano (ID = 1120765) R-Player
Geloso SA; Milano: G682 [R-Player] ID = 1120765 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model G682, Geloso SA; Milano

Country:  Italy
Manufacturer / Brand:  Geloso SA; Milano
Year: 1965 Type: Recorder and/or Player
Semiconductors (the count is only for transistors) 14:
Wave bands FM Radio only
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 105-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: G682 - Geloso SA; Milano
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 320 x 125 x 270 mm / 12.6 x 4.9 x 10.6 inch
Notes Radio-registratore ad alta fedeltà G682. Deriva dal mod. G681, con l'aggiunta di un radio-sintonizzatore a modulazione di frequenza. Tre velocità nastro: 9,5-4,75-2,38 cm/sec, registrazione a doppia traccia.
Net weight (2.2 lb = 1 kg) 6.4 kg / 14 lb 1.6 oz (14.097 lb)
Price in first year of sale 89,500.00 ITL
Mentioned in Bollettino Tecnico Geloso (n. 97-a, estate-autunno 1965)

Model page created by Alessandro De Poi. See "Data change" for further contributors.

All listed radios etc. from Geloso SA; Milano
Here you find 673 models, 576 with images and 523 with schematics.
