Solid State P.A. Amplifier G1/120
Geloso SA; Milano
- Country
- Italy
- Manufacturer / Brand
- Geloso SA; Milano
- Year
- 1970 ?
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 275499
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 7
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Powered by external power supply or a main unit. / DC 12 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 30 W (undistorted)
- Material
- Metal case
- from Radiomuseum.org

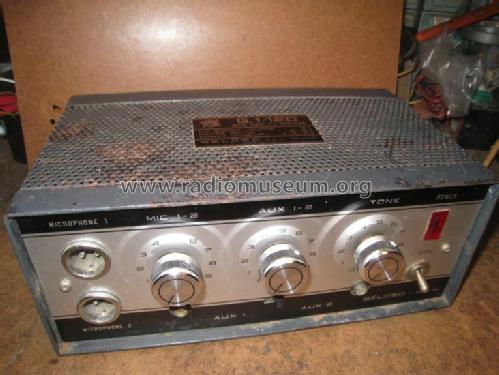

- Model: Solid State P.A. Amplifier G1/120 - Geloso SA; Milano
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 235 x 140 x 100 mm / 9.3 x 5.5 x 3.9 inch
- Notes
-
Questo amplificatore viene alimentato dall'alimentatore Geloso G1/121.
- Net weight (2.2 lb = 1 kg)
- 2.3 kg / 5 lb 1.1 oz (5.066 lb)
- Mentioned in
- -- Schematic
- Author
- Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
