H32 DeLuxe

H32 DeLuxe ; General Electric Co. (ID = 1519583) Radio
Use red slider bar for more.
H32 DeLuxe ; General Electric Co. (ID = 1519583) Radio

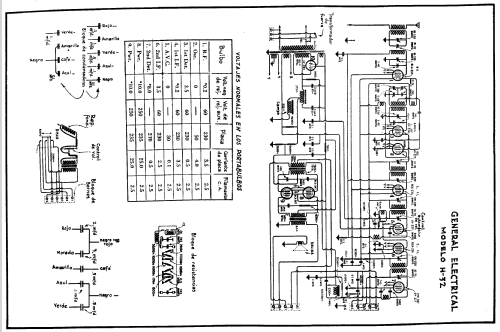

Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  General Electric Co. (GE); Bridgeport CT, Syracuse NY
Brand

Musaphonic
Year: 1931 Type: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 10: 35 24 27 35 35 27 47 47 80 27
Principle Super-Heterodyne (Super in general)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: H32 DeLuxe - General Electric Co. GE;
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Price in first year of sale 164.00 $
Collectors' prices
External source of data Ernst Erb
Source of data Radio Collector`sGuide 1921-
Mentioned in Collector's Guide to AR4.Ed.,Bunis, tube


All listed radios etc. from General Electric Co. (GE); Bridgeport CT, Syracuse NY
Here you find 2437 models, 1617 with images and 1744 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
