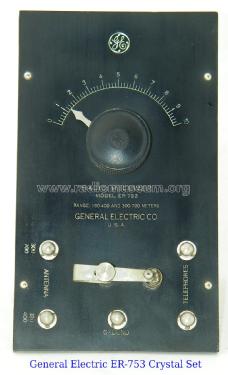

Radio Receiver ER-753 Design No. 2 Vertical Wedge
General Electric Co. (GE); Bridgeport CT, Syracuse NY
- Country
- United States of America (USA)
- Manufacturer / Brand
- General Electric Co. (GE); Bridgeport CT, Syracuse NY
- Year
- 1922/1922
- Category
- Detector-Radio (Crystal or diode, without tubes/transistors)
- Radiomuseum.org ID
- 42045
-
- Brand: Musaphonic
Ebay Nr. 190081208534 Bild bearbeitet.
- Main principle
- Crystal or Solid State Detector
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- No Power needed
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: Radio Receiver ER-753 Design No. 2 [Vertical Wedge] - General Electric Co. GE;
- Shape
- Tablemodel, slant panel.
- Notes
-
All G.E. tube sets were sold under the RCA name until 1931. Ranges: 180 m - 400 m and 300 - 700 m. See pictures (also) at RCA.

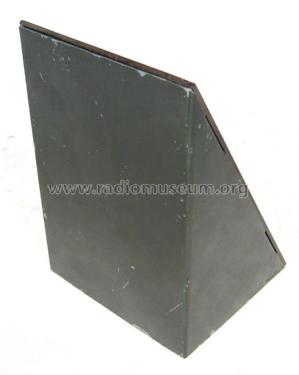

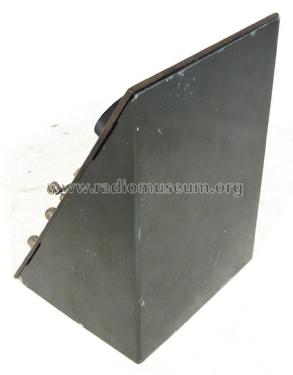

The first ad for the GE ER-753 appeared in the May, 1922 Wireless Age magazine. The ER-753 was available with a slant panel EZKASE metal enclosure in both a horizonal and a vertical wedge design.
GE was encouraged by RCA to improve the appearance of the ER-753 and by August it had been replaced by the wooden boxed ER-753A.
- Price in first year of sale
- 18.00 $
- External source of data
- Ernst Erb
- Source of data
- Radio Collector`s Guide 1921-1932
- Literature/Schematics (2)
- Radiola, the golden Age of RCA (page 149-152)
- Literature/Schematics (4)
- Radio Collector`s Guide 1921-1932 (page 77.)
- Other Models
-
Here you find 2906 models, 2125 with images and 2031 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from General Electric Co. (GE); Bridgeport CT, Syracuse NY
Collections
The model Radio Receiver is part of the collections of the following members.
